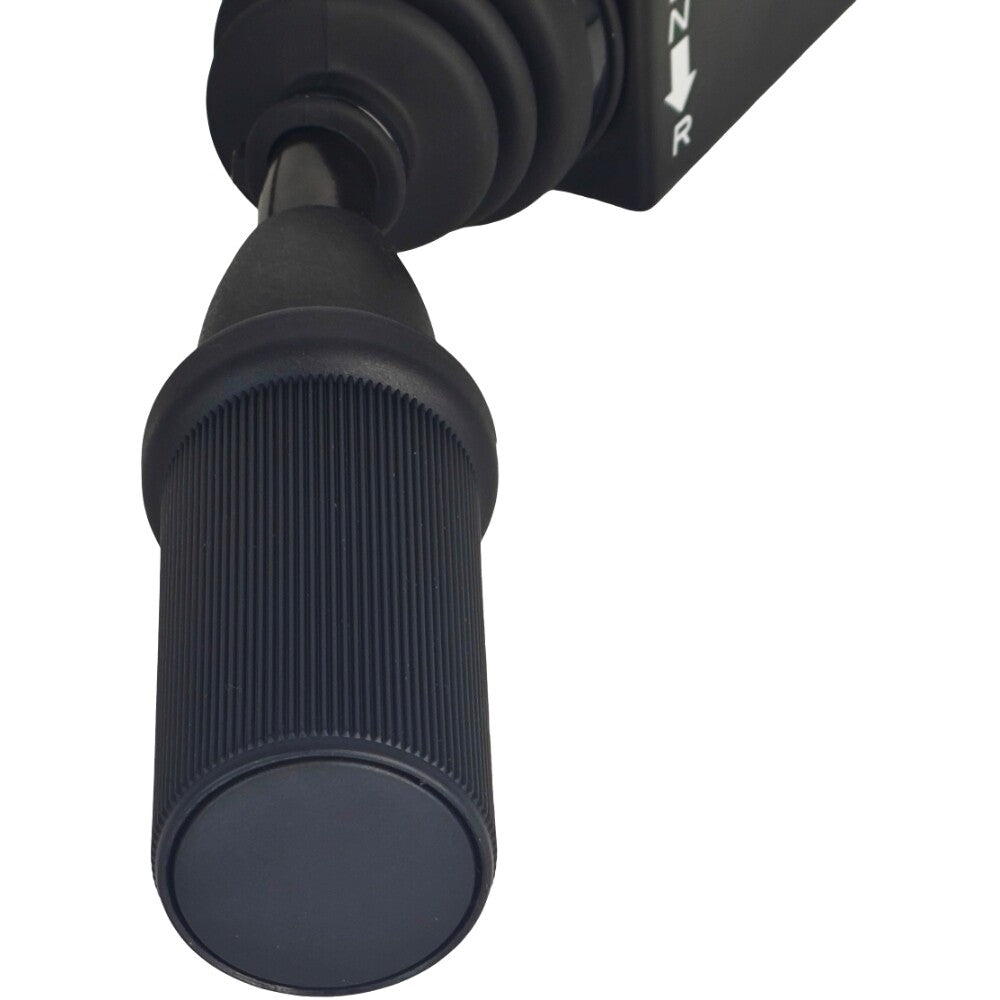

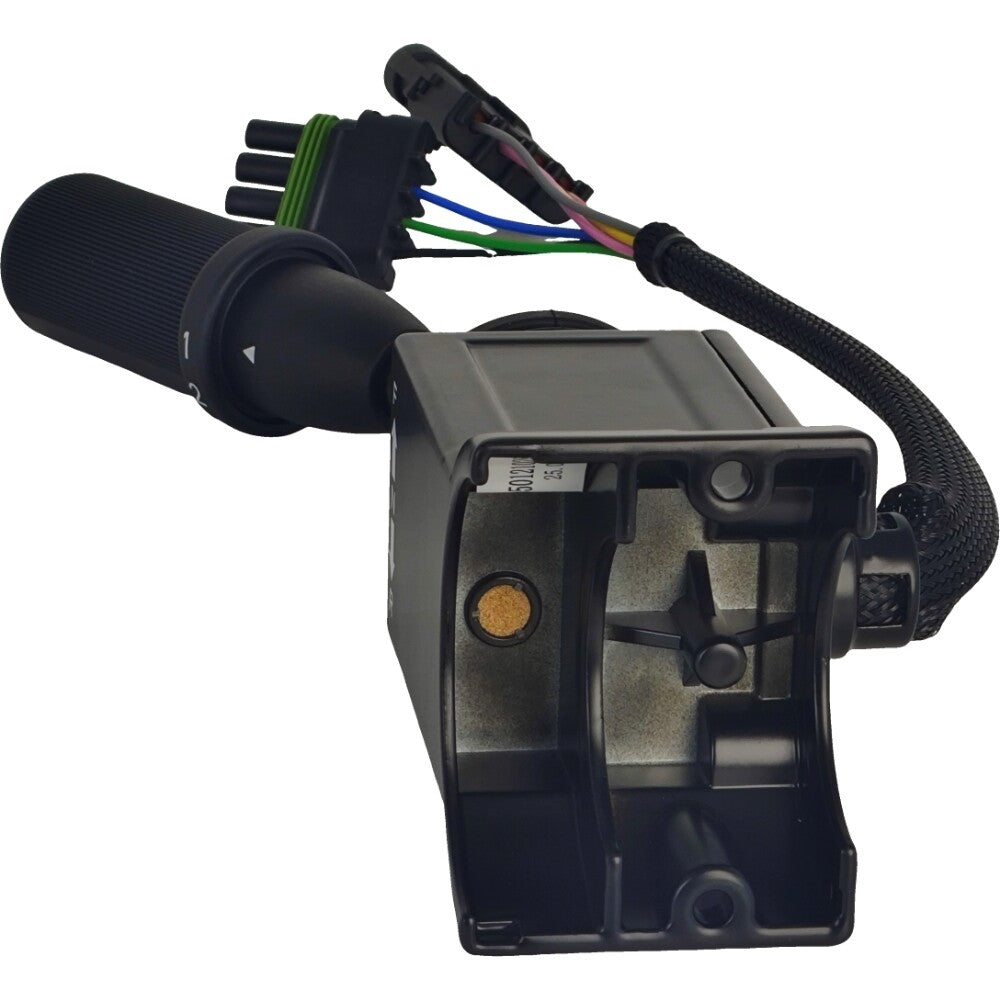

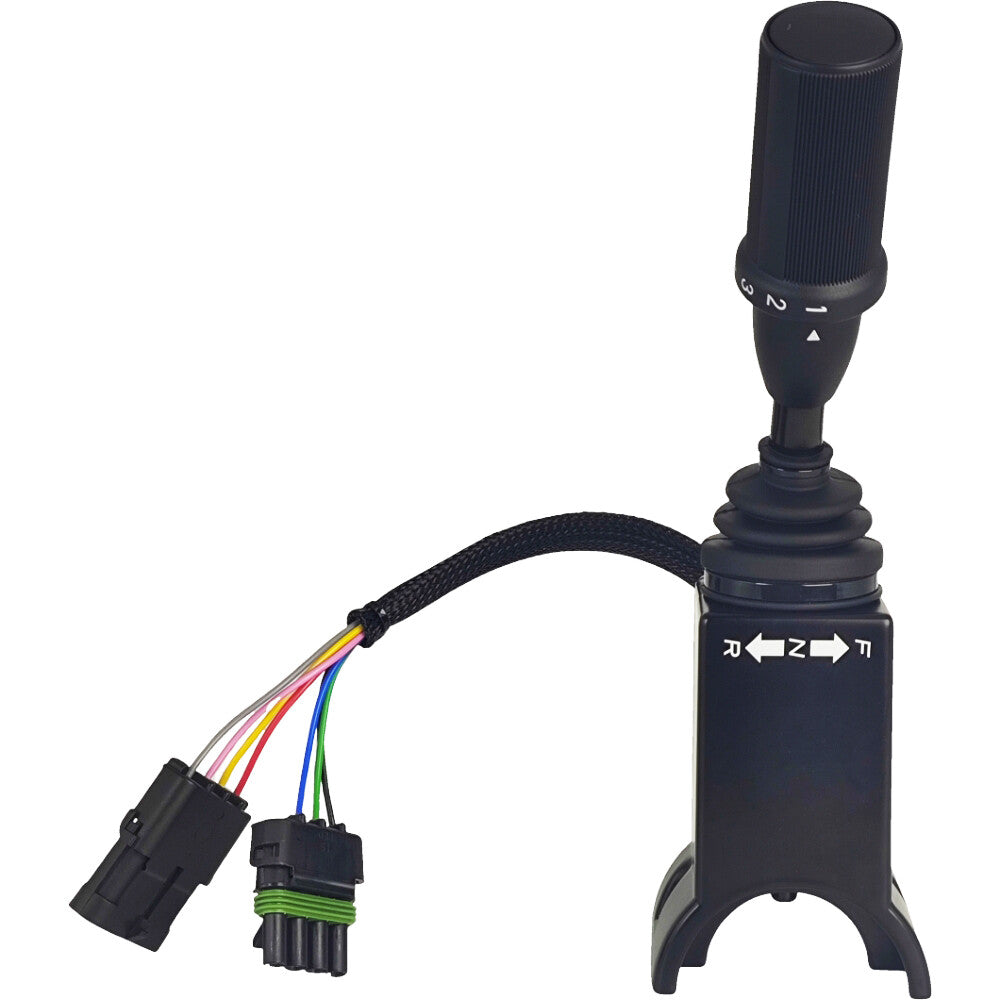

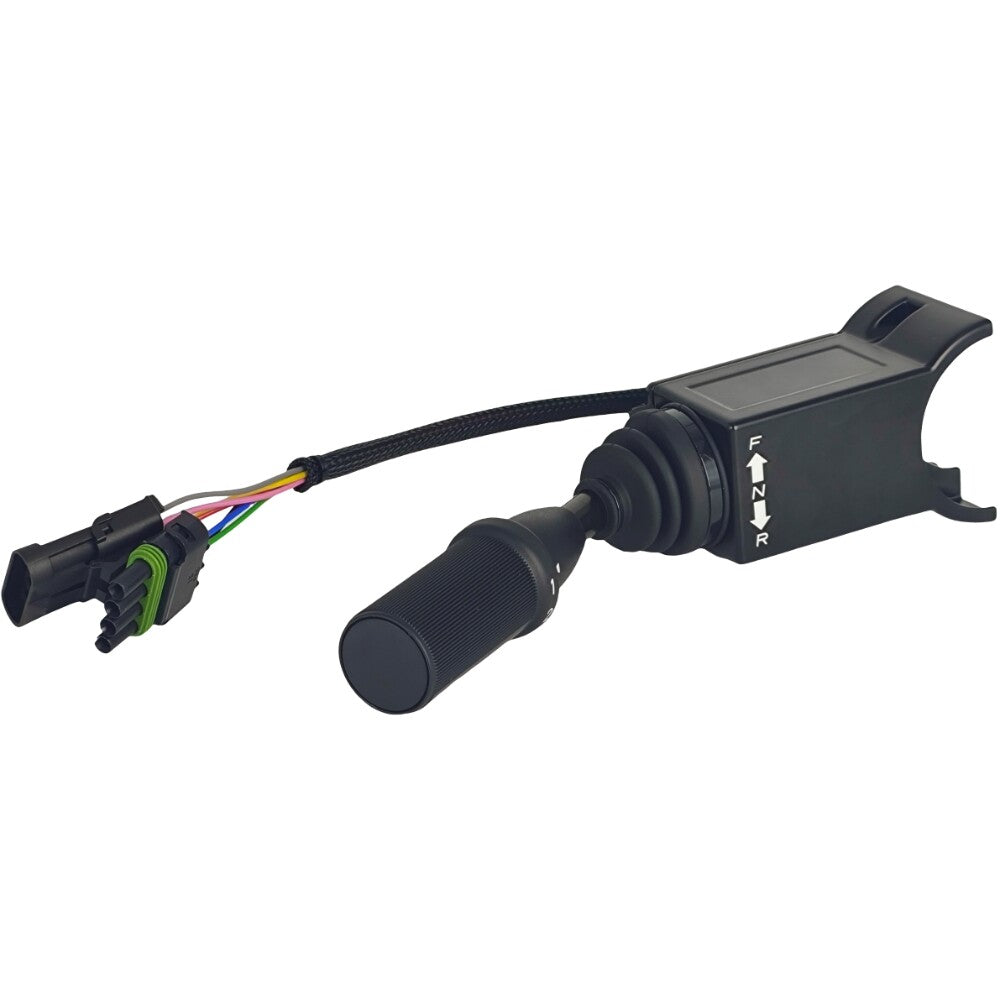

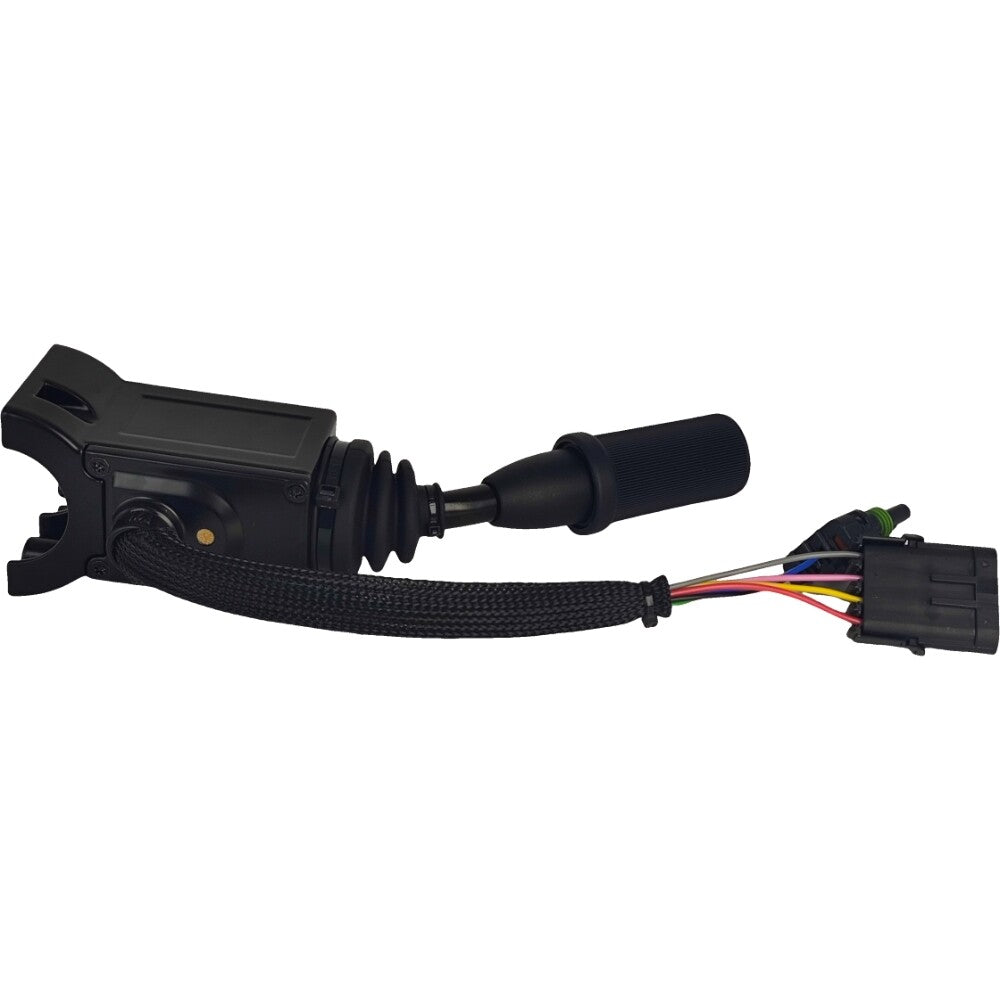

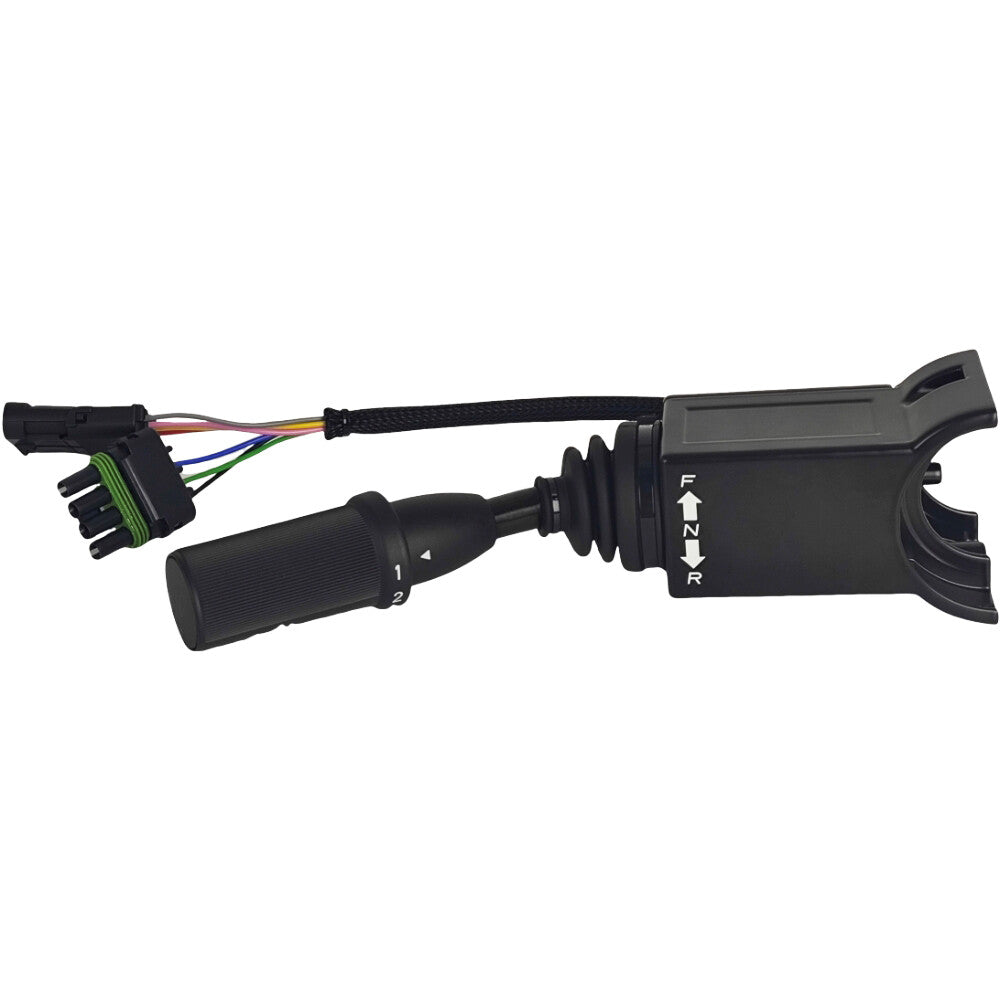

Transmission Shifter 238270A1 for Case 621B 721B 821B 721C 821C 921C 521E

Part Number:
238270A1, 0501210288, 0501.210.288
Specification:
Nominal Voltage: 12/24
Operating Voltage: 10.8-30
Max Current: 1-Amp
Operating Temperature: -30°C to +70°C
Fit for:

ZF Transmission
Fit for Case Wheel Loader:

1021F, 1021G, 1121F, 1121G, 521D, 521E, 521F, 521G, 621B, 621C, 621D, 621E, 621F, 721B, 721C, 721D, 721E, 721F, 721F Z, 821B, 821C, 821E, 821F, 921B, 921C, 921E, 921F, 921F XR
Parts can vary depending on model serial number and model year. Check the Serial Number Brake to ensure the correct part for your equipment.
Serial Number Brake:
1021F - Tier 4 (NA) 01/11 08/16
1021G - Tier 4B (NA) 10/16 07/21
1121F - Tier 4B (NA) 09/16 06/22
1121F Tier 4 (NA) 04/10 10/16
1121G - Tier 4B (NA) 10/16 05/21
521D - NA (S/N JEE0135501 & AFTER) 01/00 12/07
521D (Before S/N JEE0135500) 01/03 12/06
521D (S/N JEE0135501 & AFTER) - Engine Supplement 01/00 12/02
521E Tier 3 (NA) 01/08 01/13
521F - Tier 4 (NA) 01/12 01/16
521F - Tier 4B (NA) 02/16 10/16
521G - Tier 4B (NA) 11/16 05/21
621B (North America) 03/93 12/98
621C 01/99 12/01
621D - NA (S/N JEE0135501 & AFTER) 01/02 04/08
621D (Before S/N JEE0135500) 03/00 12/02
621E Tier 3 (NA) 08/07 01/12
621F - Tier 4 (NA) 01/12 01/15
621F - Tier 4B (NA) 01/14 10/16
721B (North America) 03/93 12/98
721C 01/99 12/02
721D (North America) 01/03 12/06
721D 01/03 07/06
721E Tier 3 (NA) 08/06 03/11
721E Tier 3 10/06 02/11
721F - Tier 3 (EU) 07/13
721F - Tier 4 / Tier 2 (NA) 03/11 09/16
721F - Tier 4B (EU) 06/15 11/16
721F - Tier 4B (NA) 02/15 10/16
721F - Tier 4 (EU) 03/11 03/16
721F - Tier 4A (EU) 07/13 12/15
721F Z-BAR - Tier 3 (INT) 06/13 10/16
821B (North America) 06/96 12/97
821C (S/N JEE0155000 & Before) 01/02 12/06
821C (S/N JEE0155001 & AFTER) 01/03 08/06
821E Tier 3 NA/EU 08/06 04/11
821F - Tier 4 / Tier 2 (NA) 01/11 11/13
821F - Tier 4B (NA) 01/14 10/16
921B (North America) 01/97 12/98
921C (S/N JEE0155001 & AFTER) 01/99 03/07
921E Tier 3 (NA/EU) 02/07 12/11
921F - Tier 4 / Tier 2 (NA) 10/10 01/14
921F - Tier 4B (NA) 01/14 10/16
921F XR - Tier 2 (INT) 07/22
