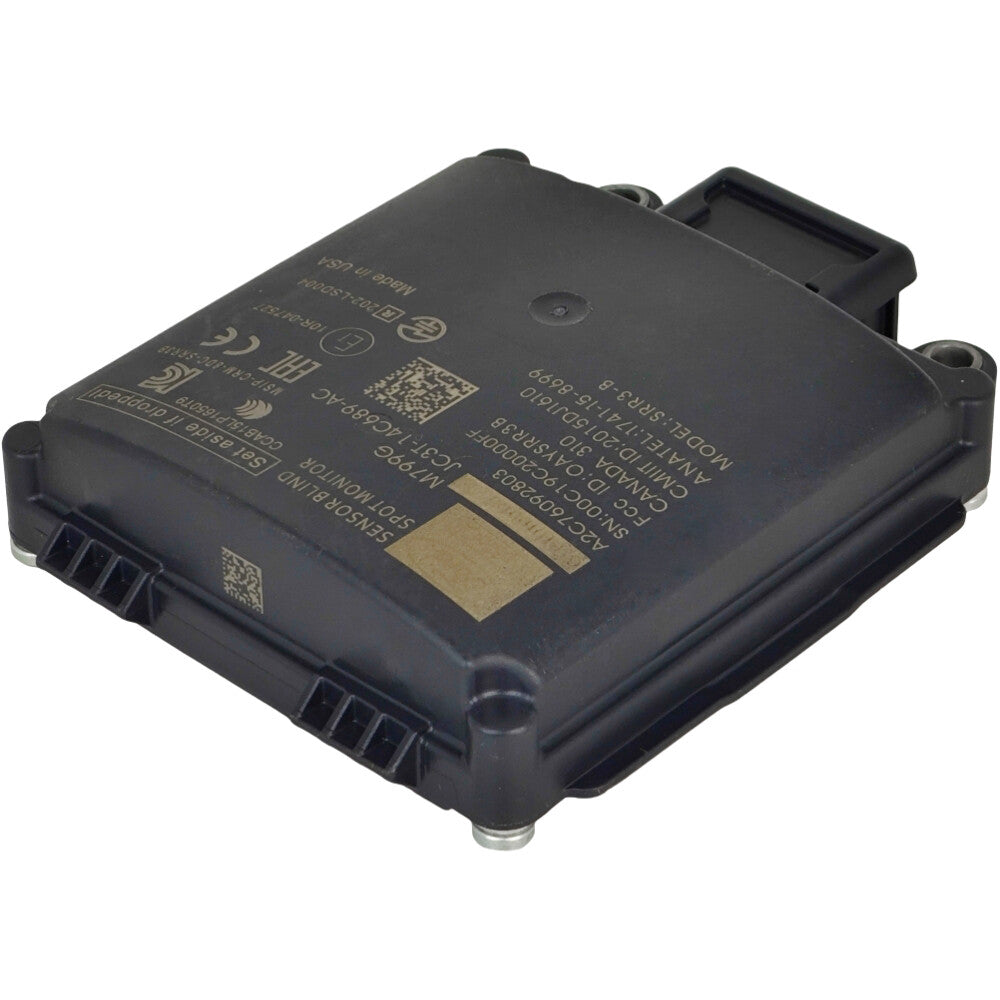

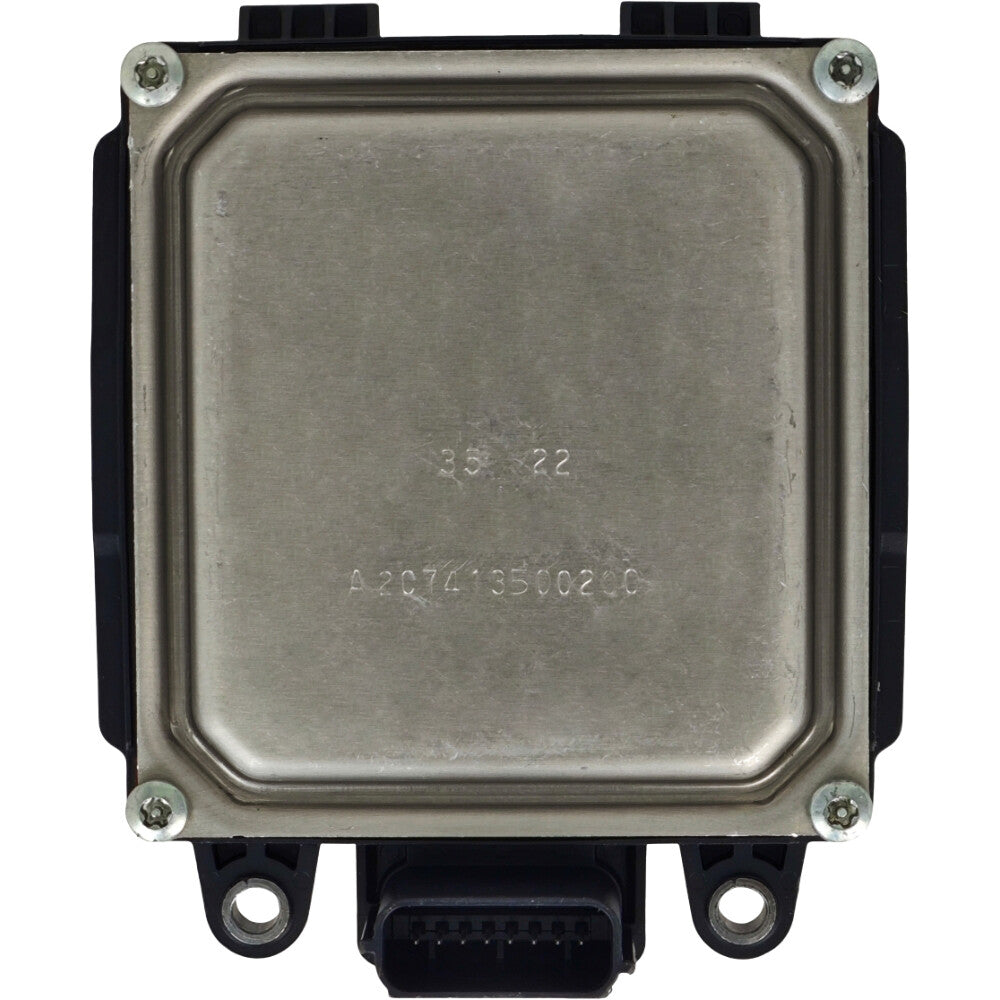

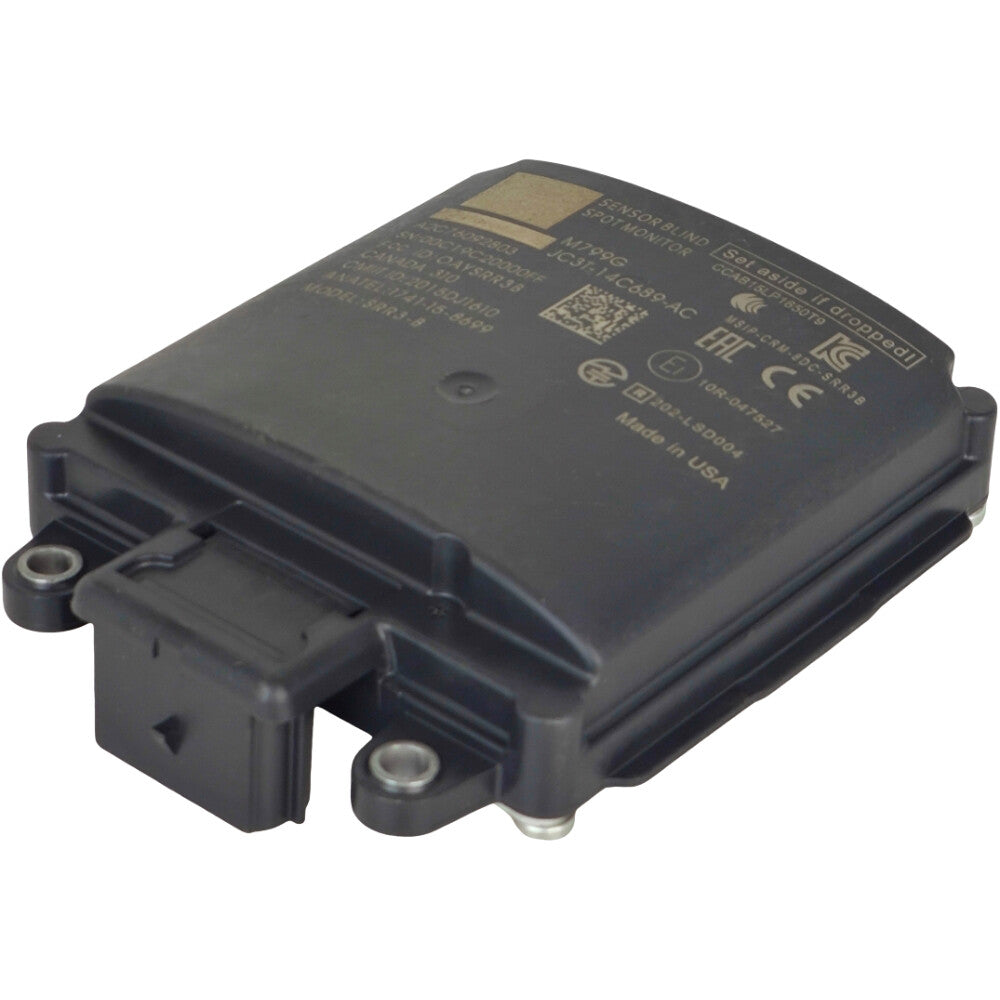

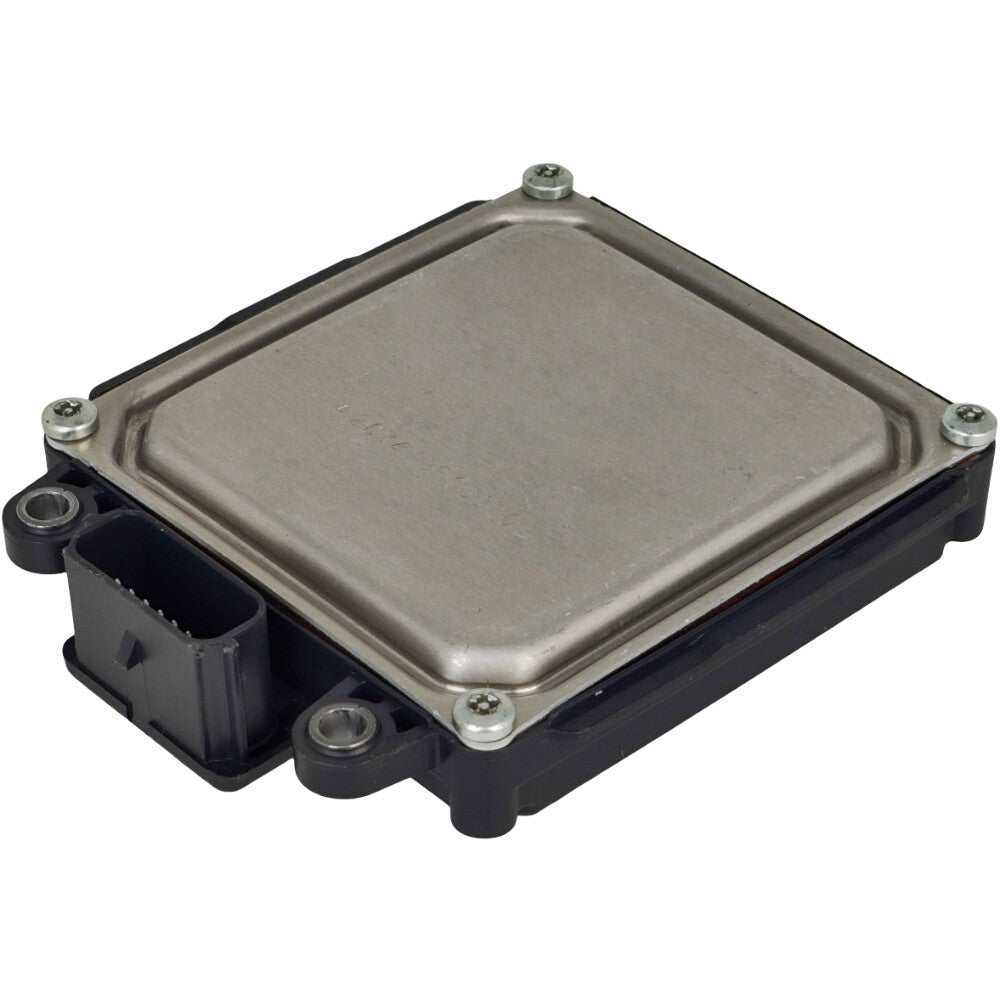

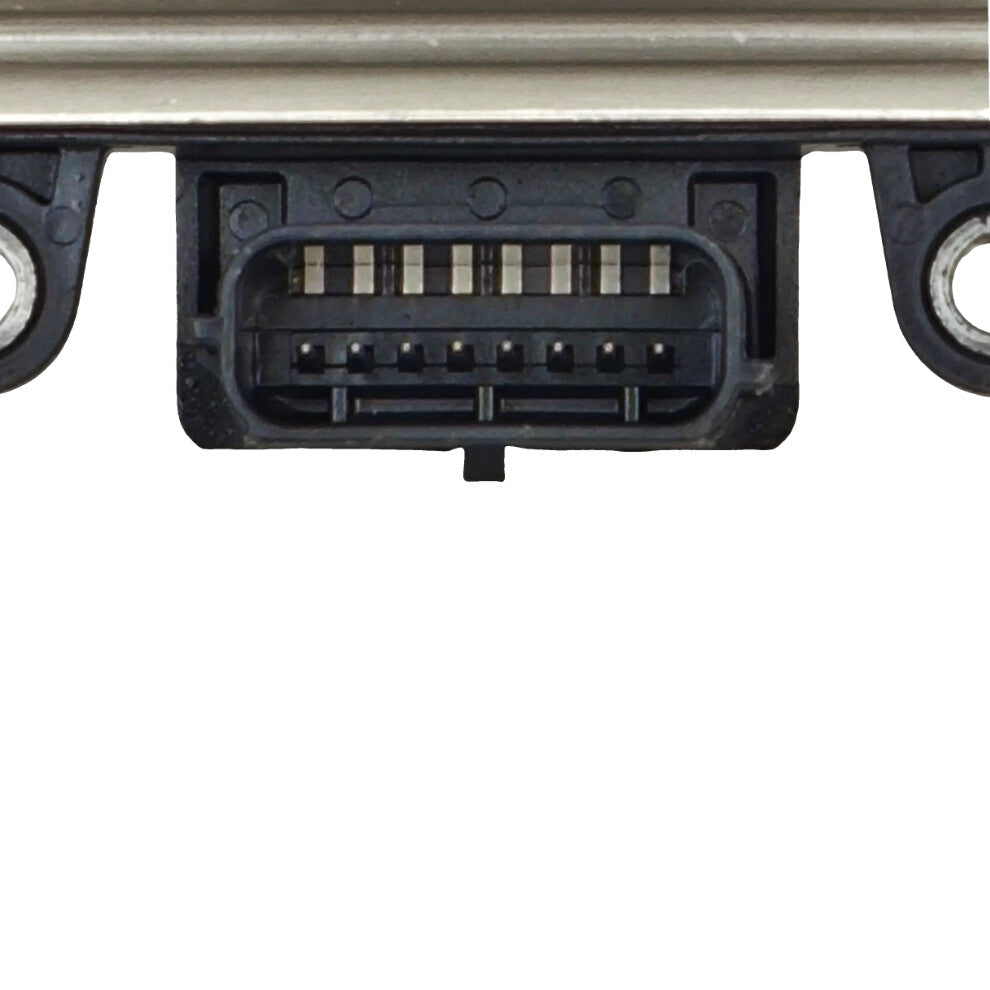

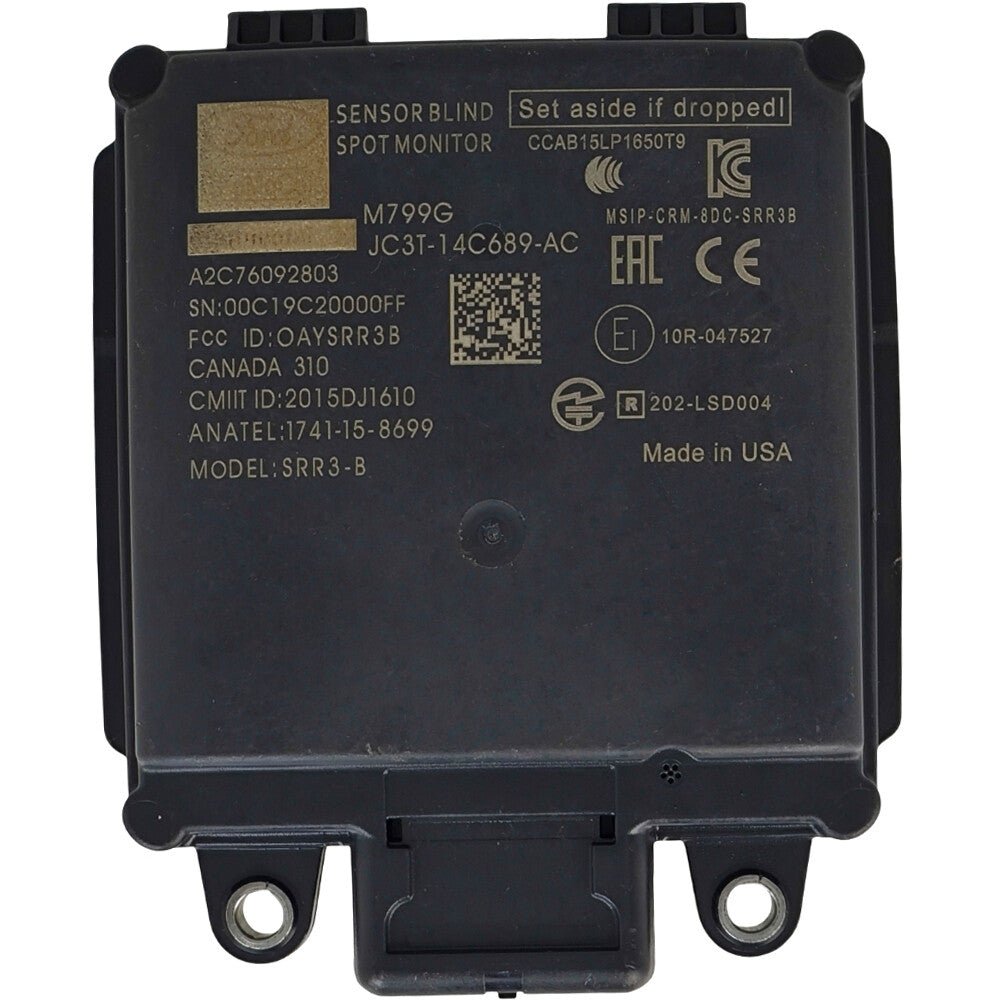

JC3T-14C689-AC Blind Spot Monitor Alert Radar Sensor Fit for Ford F350 F-450SD

Part Number:

JC3T-14C689-AC
Replace Part Number:
JC3T-14C689-AA, JC3Z-14C689-A, JC3Z-14C689-C, JC3Z-14C689-B, JC3Z 14C689B, JC3Z14C689B, JC3Z14C689C, JC3T14C689AC

Fit for:

Ford F-150 2017, 2018, 2019, 2020
Ford F-250 Super Duty 2020, 2021, 2022
Ford F-350 Super Duty 2020, 2021, 2022
Ford F-450 Super Duty 2018, 2019, 2020, 2021, 2022
Ford Transit Connect 2018, 2019, 2020, 2021, 2022, 2023

Installation and Calibration Guide:

1. Vehicle Preparation: Park the vehicle on a level surface and securely fasten the ACC unit using clips.
   2. Vertical Alignment: Use a mobile app or spirit level to adjust the ACC sensor vertically, aligning it with the top-left screw position.
   3. Horizontal Alignment: To ensure symmetry, measure and adjust the distance between the ACC unit's two sides and the vehicle body using calipers or a similar tool.
   4. Iterative Adjustment: Repeat steps 2 and 3 as necessary until both vertical and horizontal alignments meet the required standards.
   5. Calibration: Perform the calibration process using the ODIS service software. It is recommended to repeat the calibration once for accuracy.
