Contactor for Albright SW80B-156 Curtis ZAPI Controller Forklift 48V 125A
Contactor for Albright SW80B-156 Curtis ZAPI Controller Forklift 48V 125A
Regular price
$35.90
Regular price
$0.00
Sale price
$35.90
Unit price
per
Low stock: 1 left
Couldn't load pickup availability
Part Number:
SW80B-156 SW80B156
48V
125A
SPST
Application:
Fit for ZAPI B4SW11 W12 Controller Forklift
Fit for Albright
Fit for Curtis
Specifications:
Working voltage: 48V (other voltage options 12V, 24V, 36V, 60V or 72V are available for SW80 and SW80B series DC contactors; for more details, please contact us )
Ambient temperature: -40 °C to +60 °C
Net weight: 0.35 kg
Notice: SW80B-156 is a single-pole, single-throw contactor.
Albright DC Contactor Model List
Overview:
The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching resistive, capacitative, and inductive loads.Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)
Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

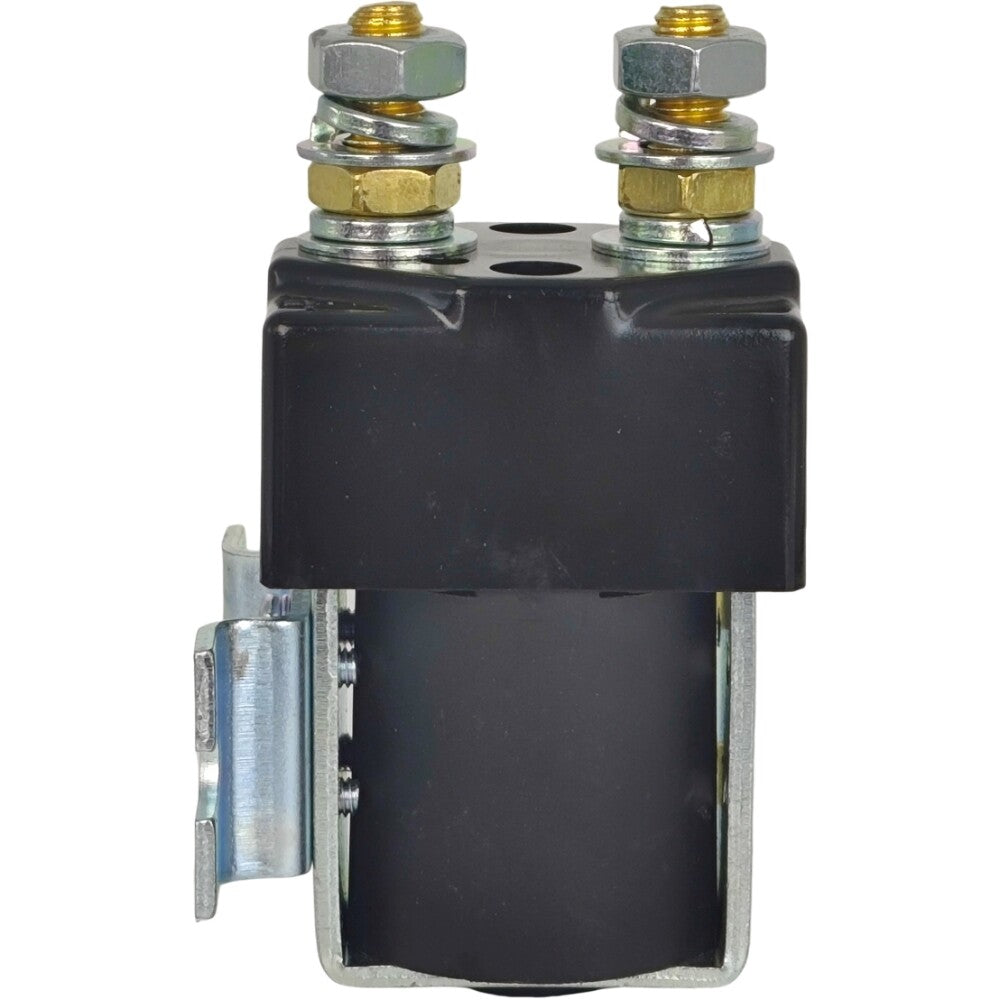

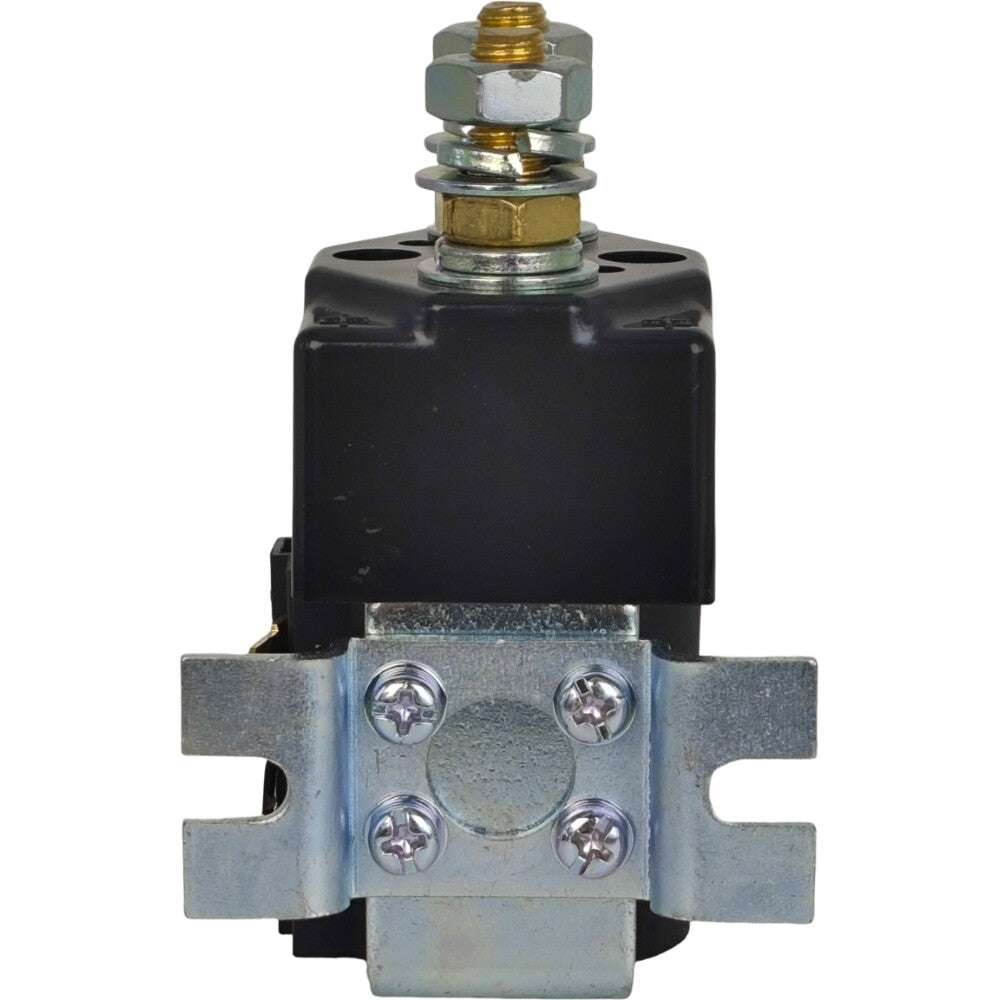

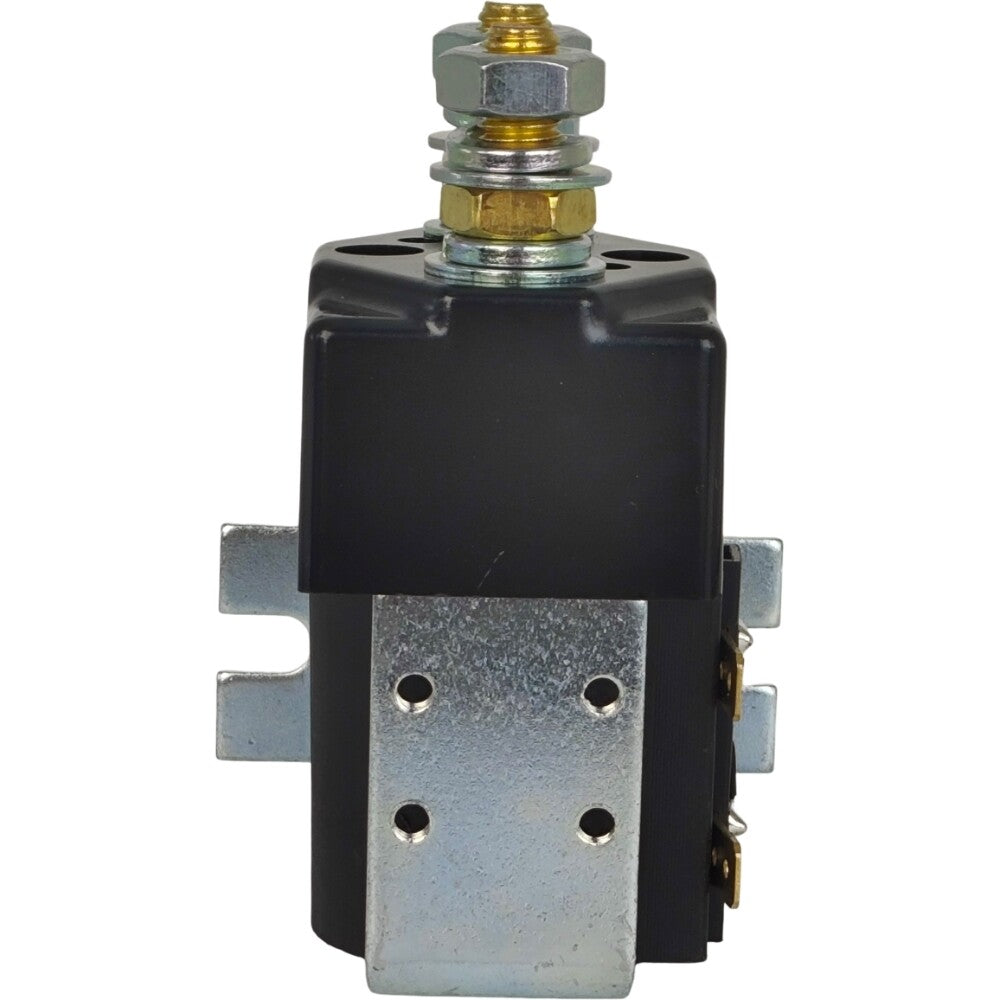

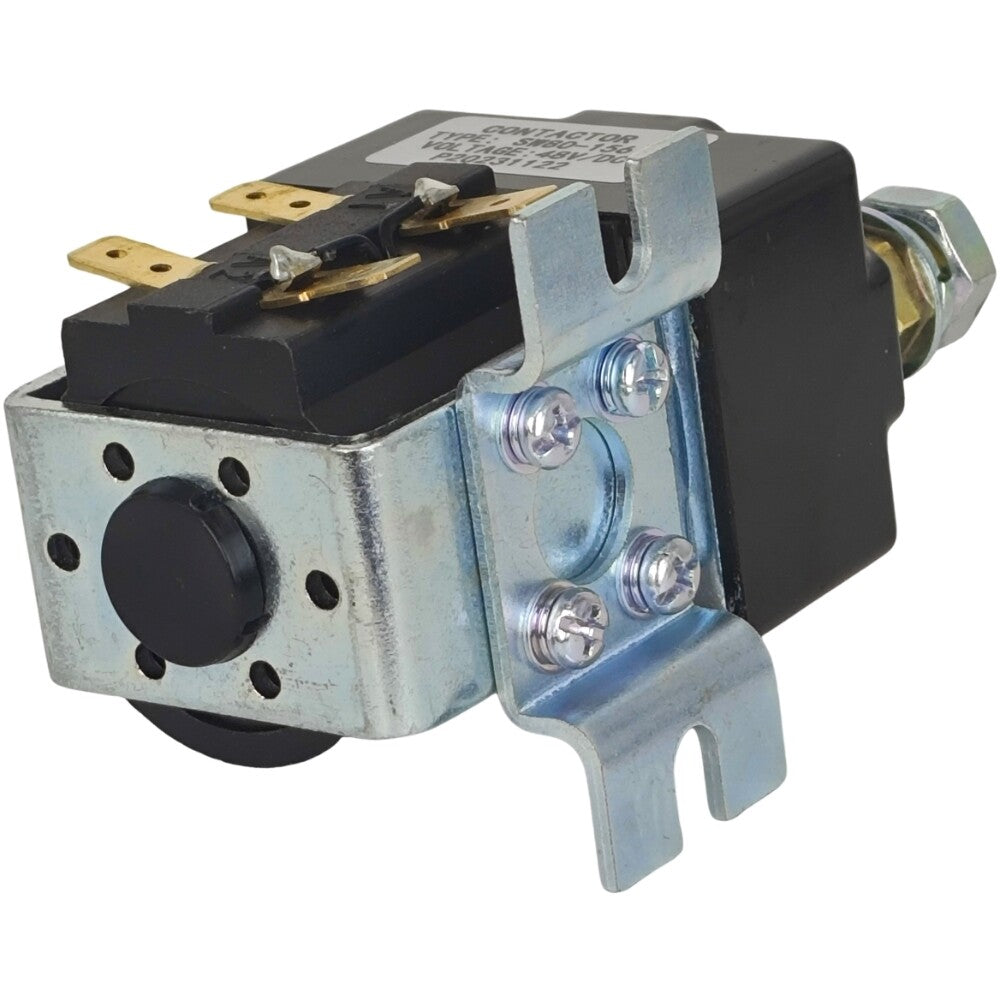

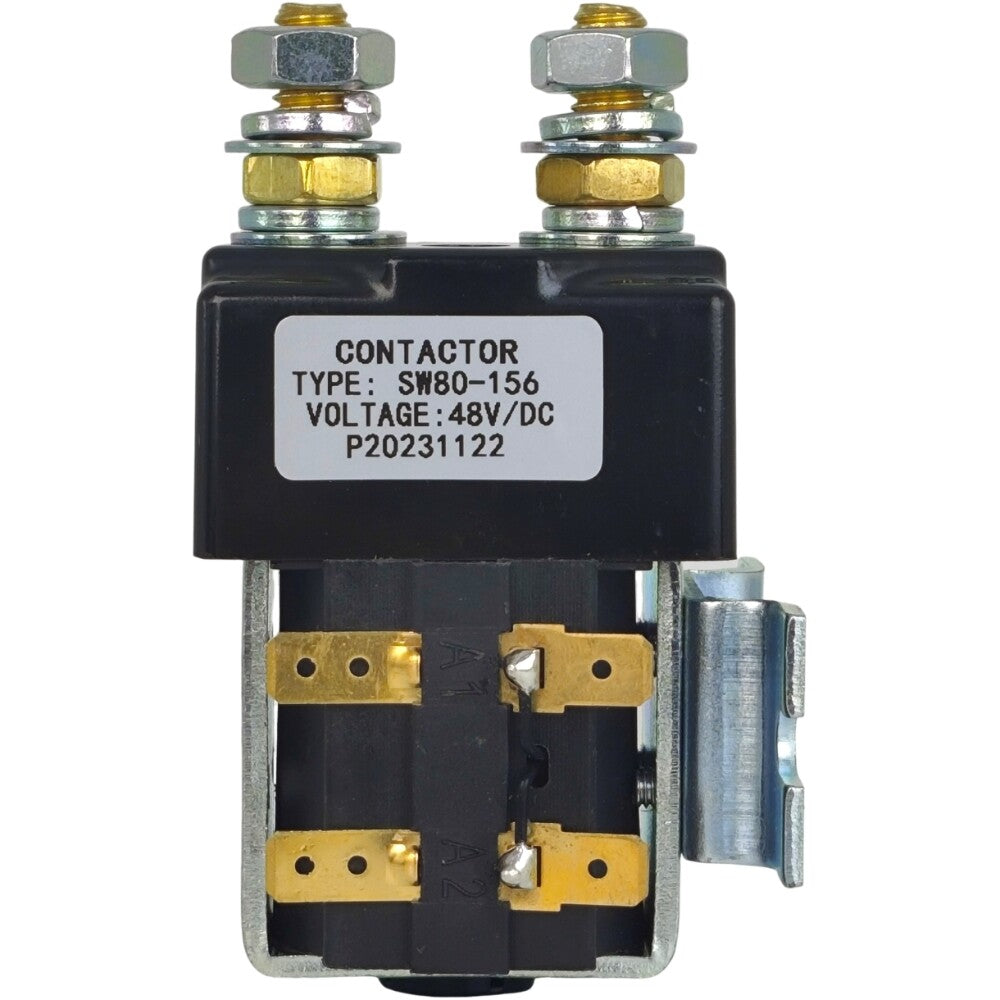

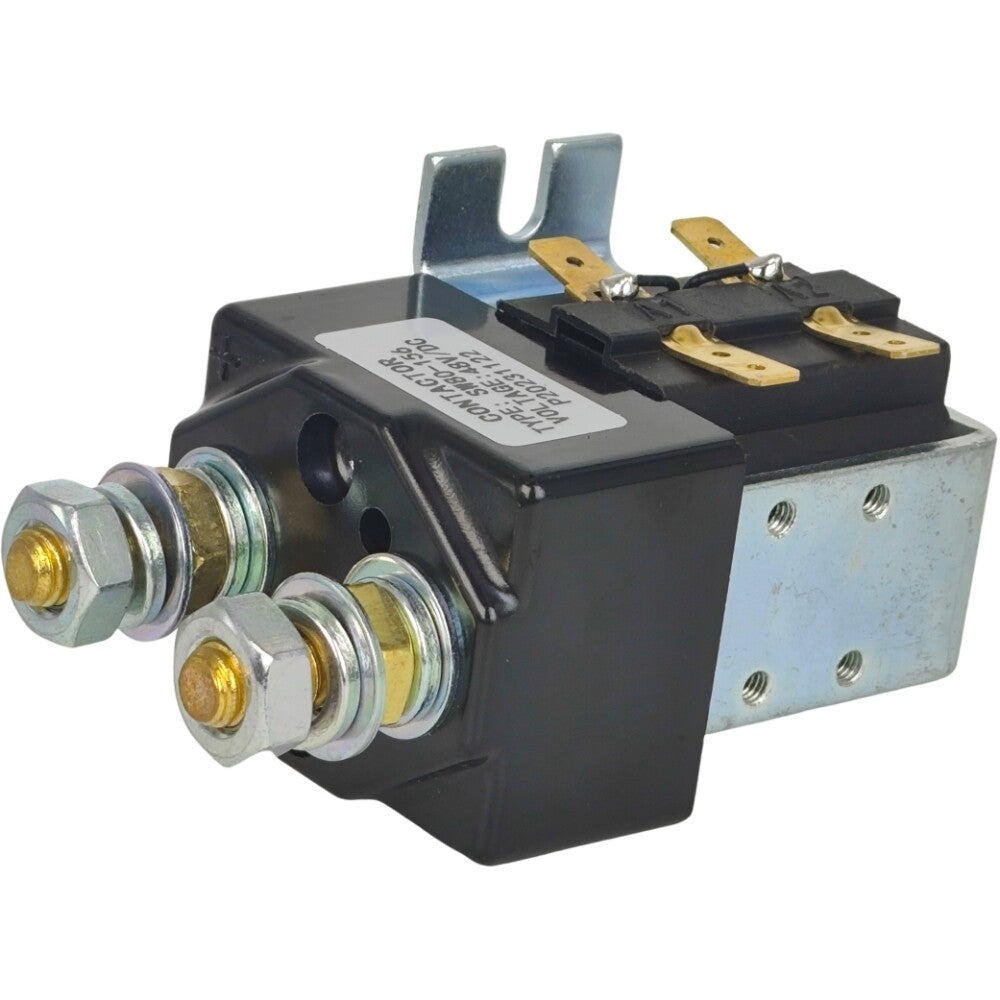

The SW80 features single-pole double-breaking main contacts with silver alloy tips that are weld-resistant, hard-wearing, and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted or as separate items. Mounting can be horizontal or vertical; when vertical, the M8 contact studs should point upwards.
