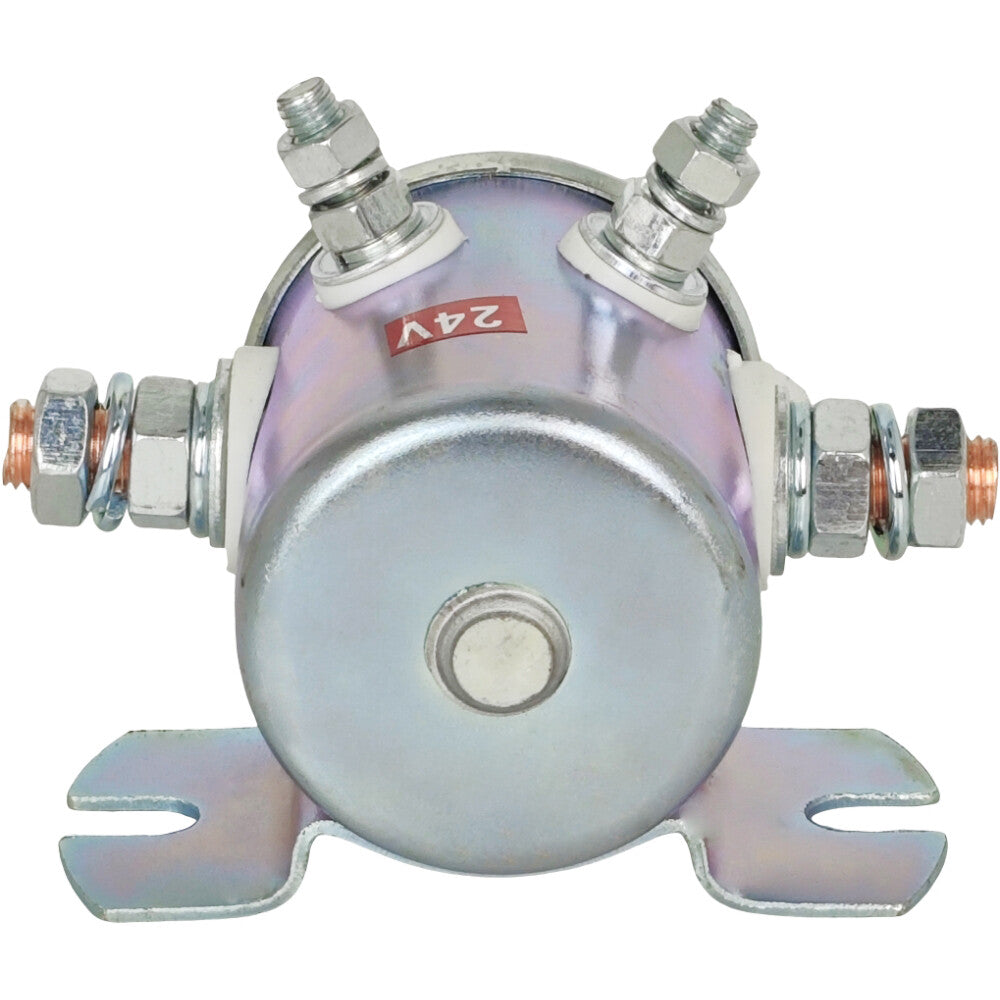

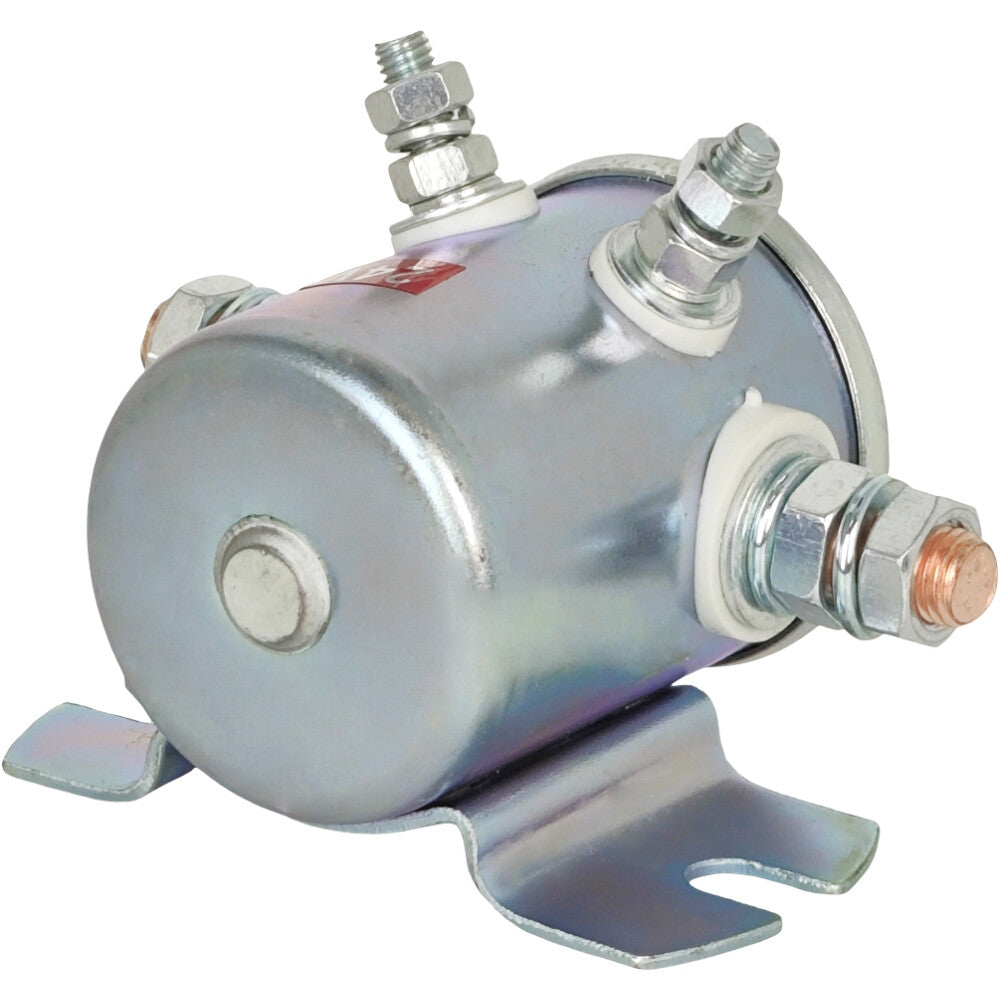

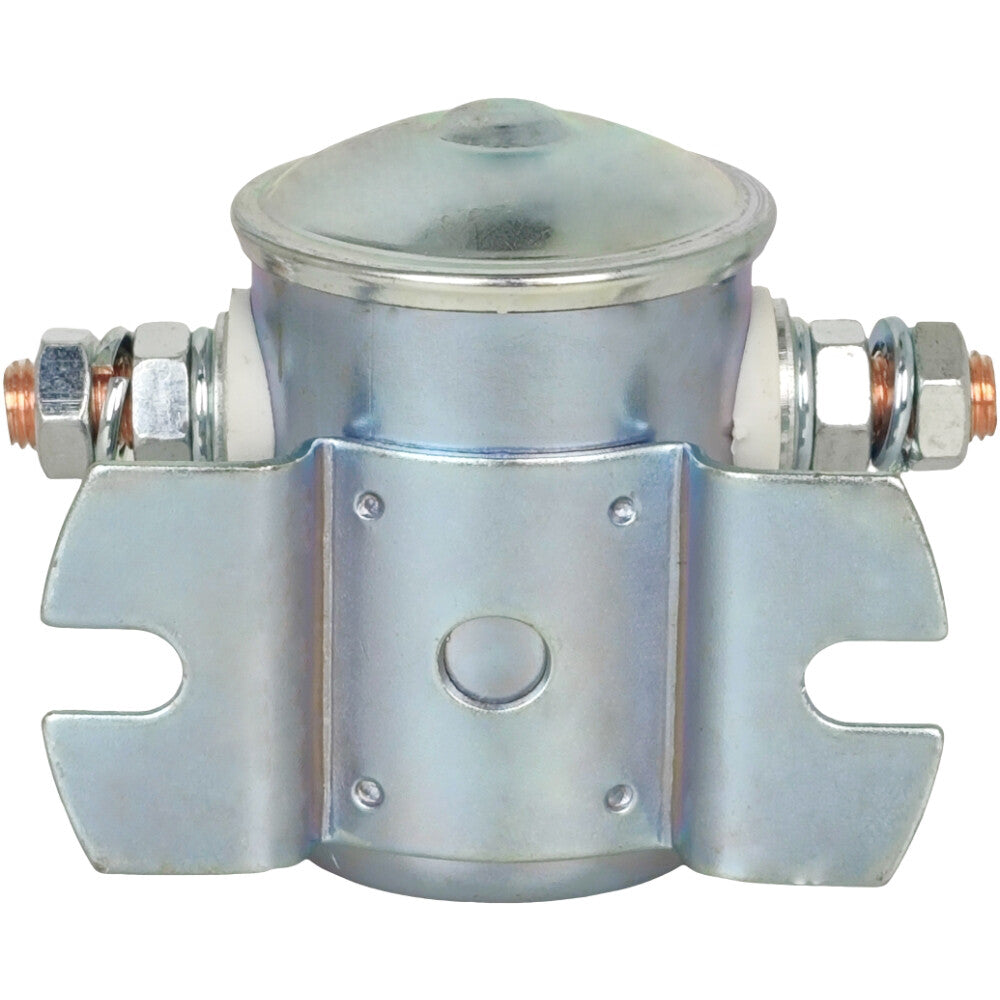

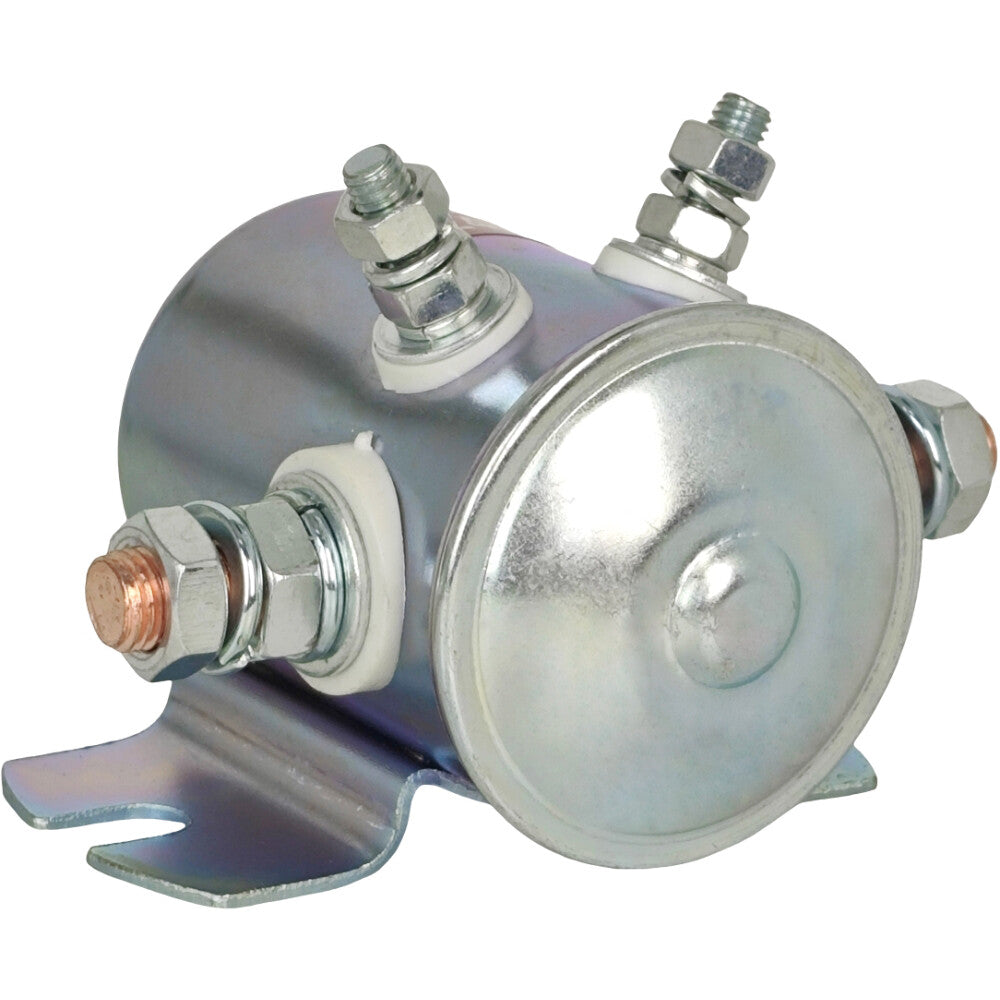

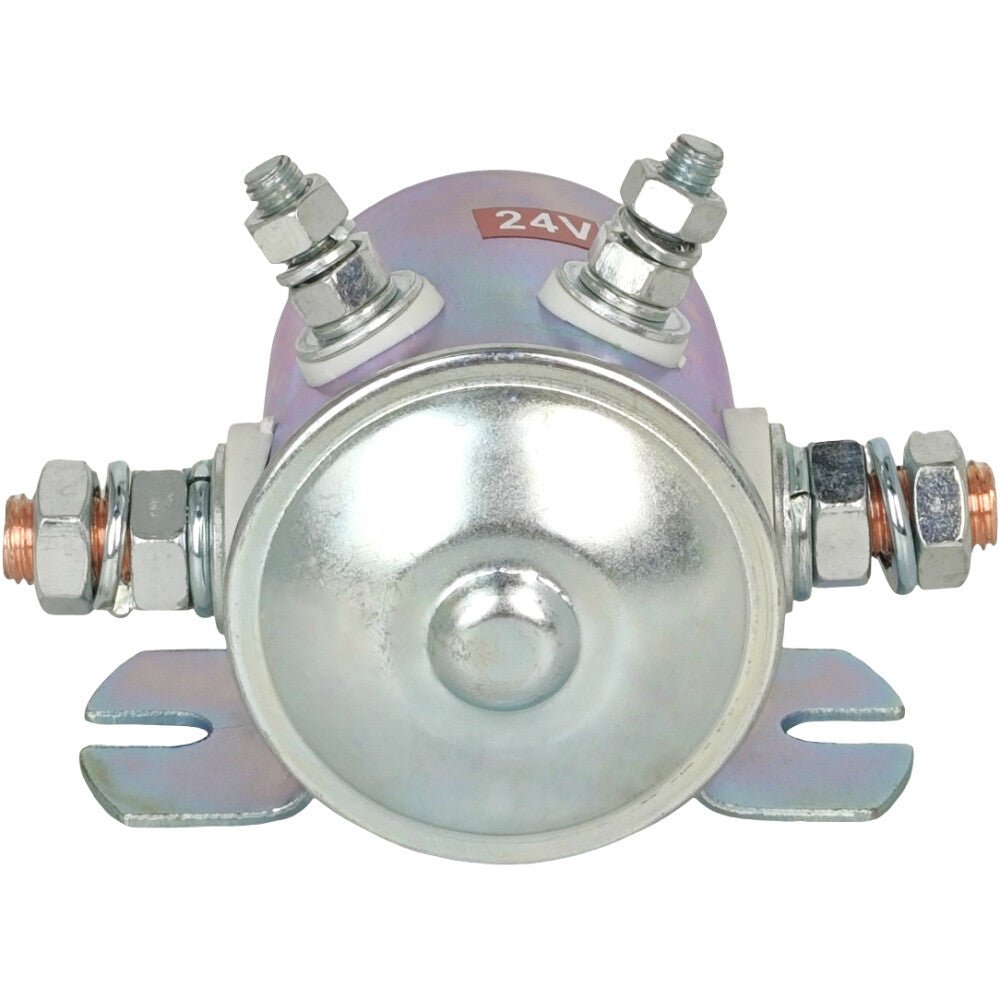

24V 974-2415-010-09 Metal DC Contactor Fit for Trombetta Solenoid Switch Relay

Part Number:

974-2415-010-09

Replace Part Numbers:
1114533, 1115615, 24063, 15-141, 15-196, 15-304, 15-310, SAS-4401, SAS-4408, SAS-5401A, 15-192, 15-204, SAS4401, SAS4408, SAS5401, S0-51181, 1114536, 79883, 6960296, AT57170, 5118140, 501270302, 65640400, 9F3099, 9F-3099, 24063-08, 24063BX

Application:

Fit for Trombetta

Specification:

Voltage: 24 Volt
Continuous Amps: 60
Surge Amps: 100
Coil Terminals: Non-Grounded, Two (2) 8-32 Studs
Contact Studs: Two (2) 5/16-24 Studs
Duty Cycle: 100% Continuous
Contact Material: Copper
No Additional Sealing
Mounting Hardware Included
Standard Slot
1.160” Standard Location
