Part Number:
5000- 7000LB
Application:
5000- 7000LB winch with DC 12V 500A ATV UTV
Fit for Jeep, ATV, SUV, Thumb Truck, Boat, 4x4 Vehicles Winch, Battery Powered Winches, Vehicle Mounted Cranes
Winch Motors, Snow Plow & Spreader Motors, Windlasses, Hydraulic Pump Motors & Other Reversible Motors
Specification:

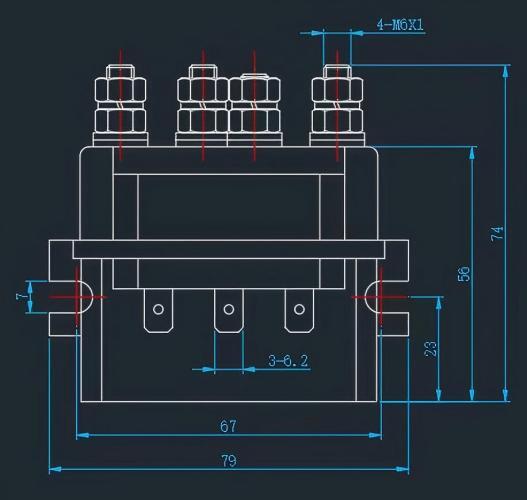

Length: 3.11" (79 mm)
Width: 2.02" (51.5 mm)
Height: 2.91" (74 mm)
Rated Voltage: 12V DC
Double Pole Double Throw (DPDT)
Resistance: 6Ω±5% (at 20°C)
Contact Circuit Voltage: 80V DC
Contact Material: AgCdO / AgCuO
Contact Load Current: 300A＜5 minutes
Contact Voltage Drop <0.2V (at 20A)
Maximum Instantaneous Current: 800A
Environment temperature: -30°C - 85°C
Acceleration: ≤3.5g
Speed: 60-100/Min
Mechanical life: up to 100,000Ops
Electrical life: up to 60,000Ops
Operation Regulation: 50 Circle
