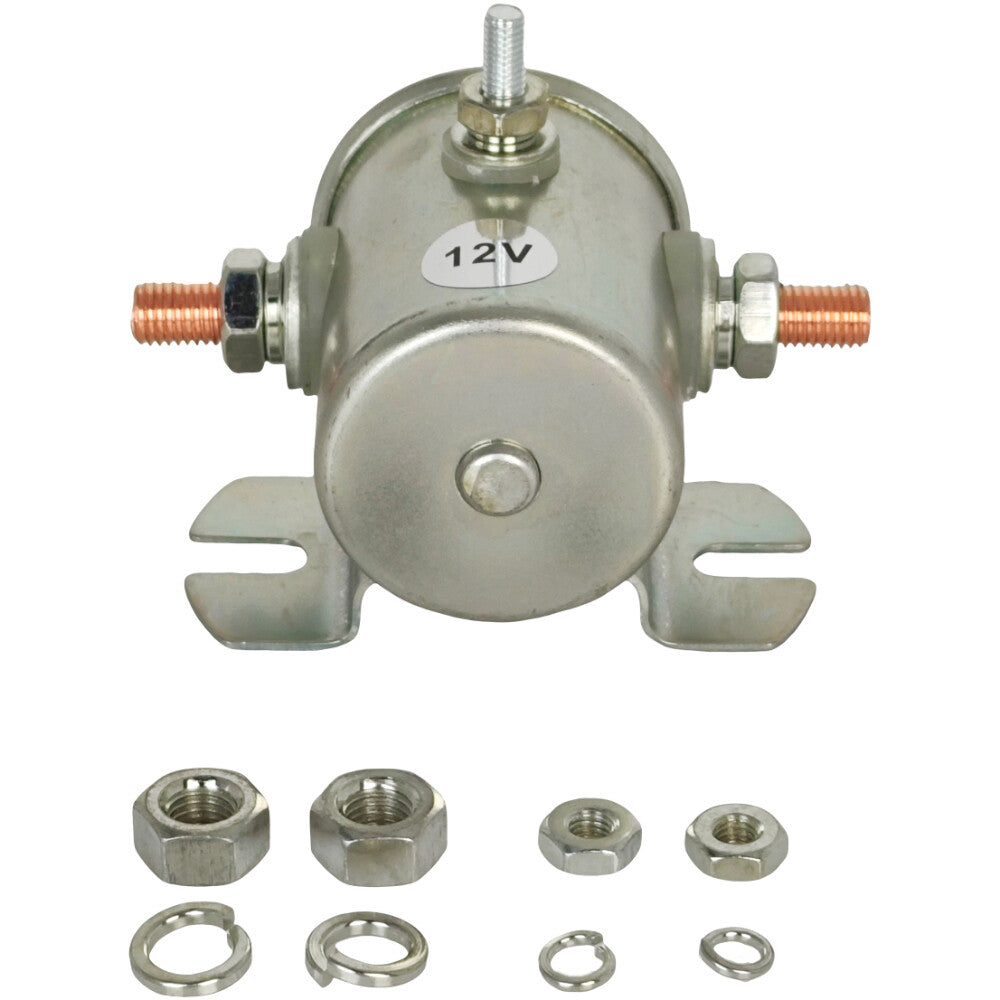

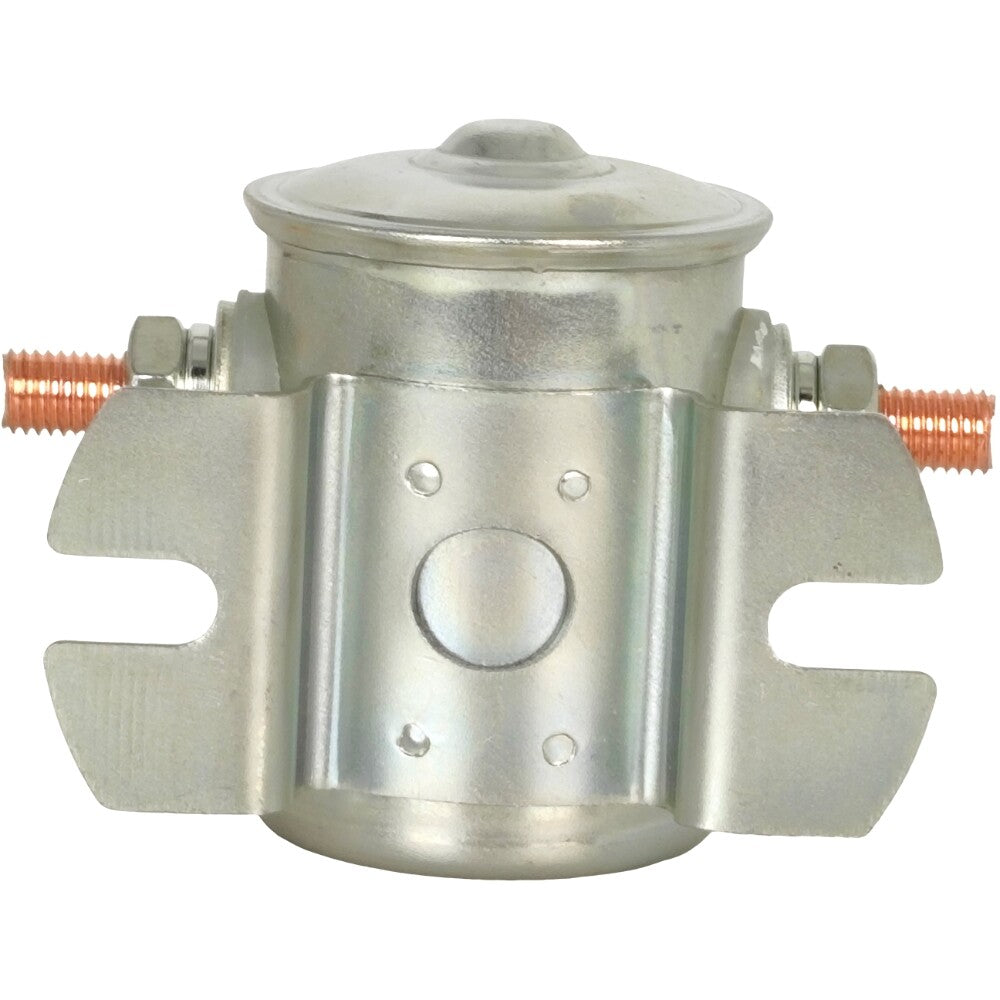

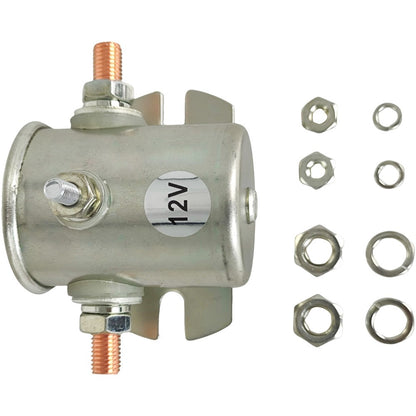

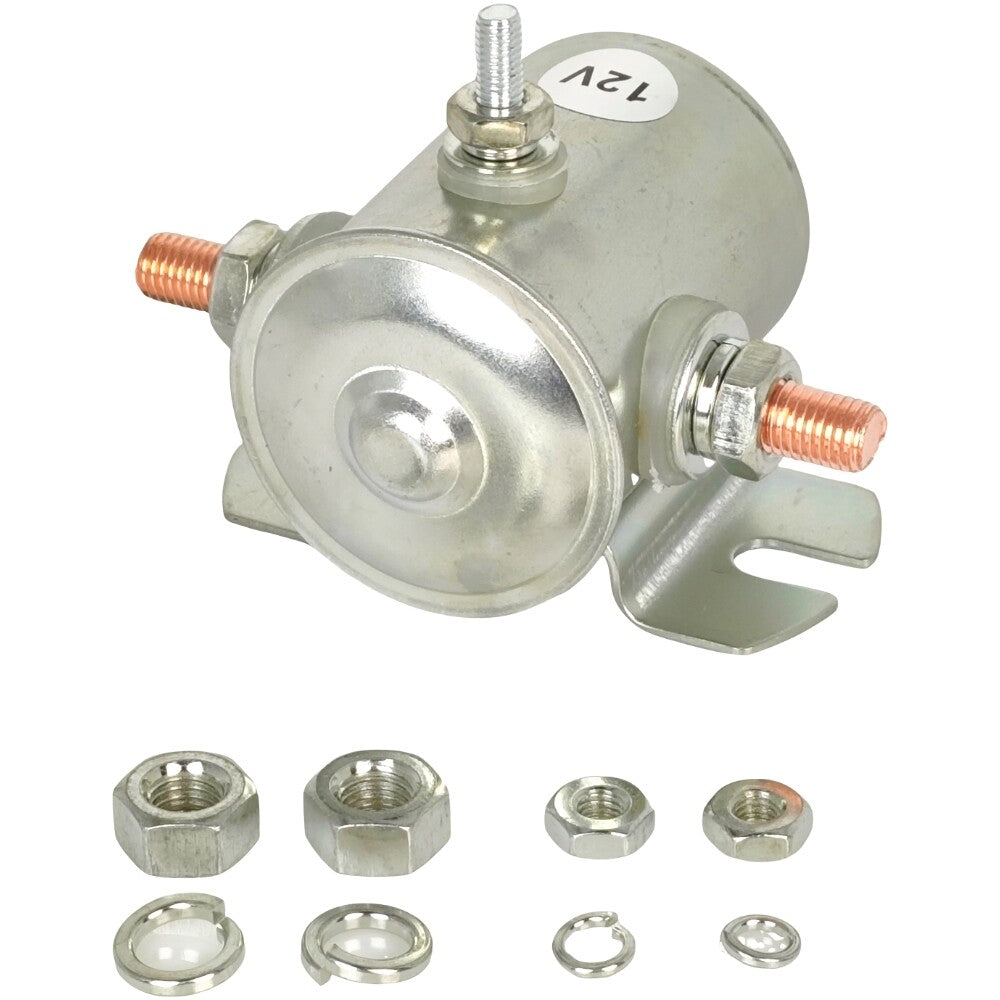

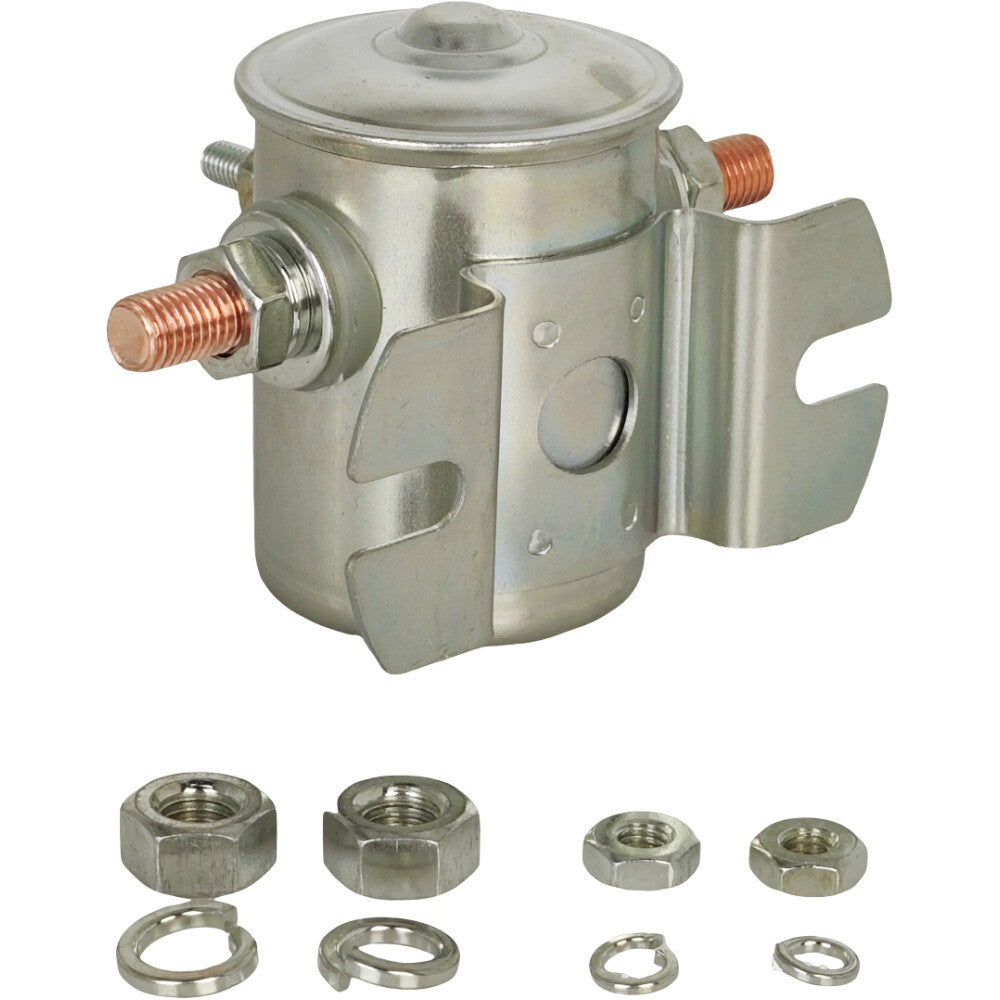

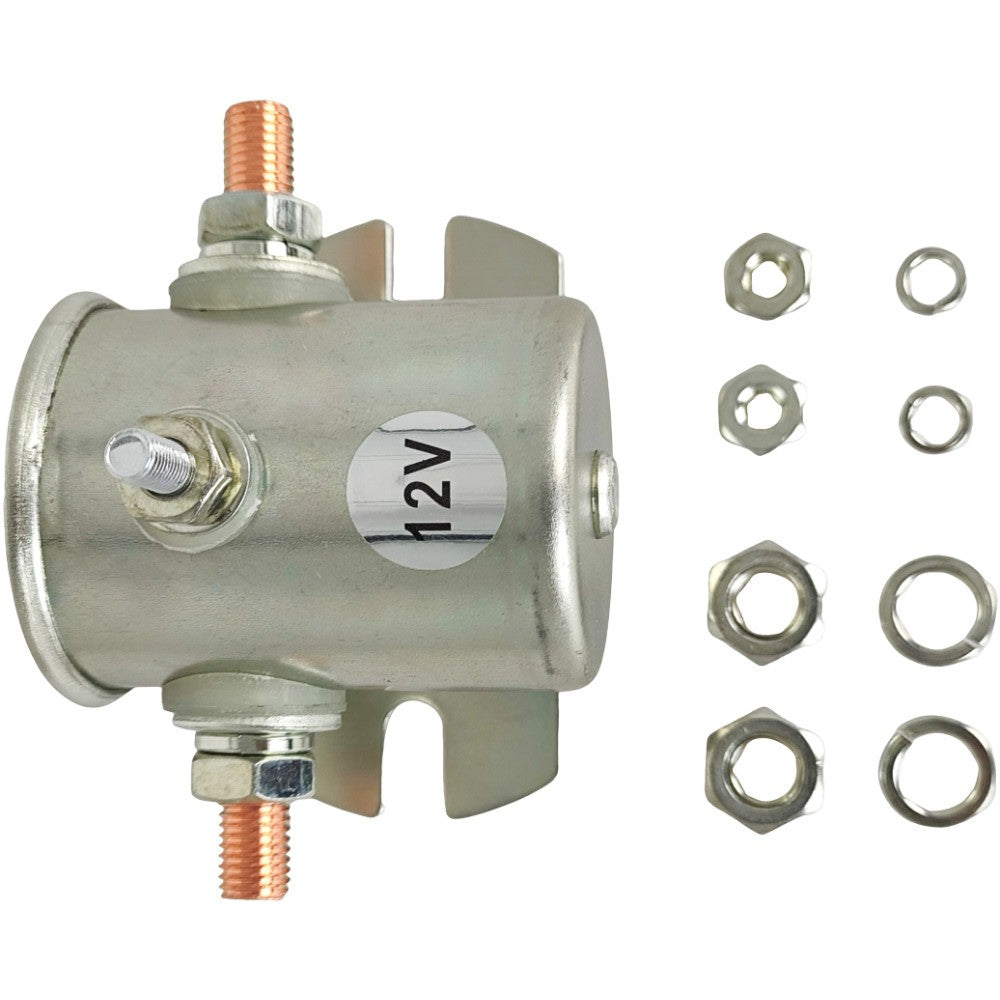

12V 200A 3-Terminal Heavy Duty Continuous Solenoid Relay for Golf Carts Marine

Part Number:

1114240, 1114241, 1114538, 97240-X, 70091714, 974-1215-10-16, 934-1215-010-16, 934121501016, 9341215010, 007277, SO51175, 15-139, SAS4208

Specification:

Voltage: 12VDC
Continuous Duty
Max Transient Flash Current: 200Amp
Continuous Working Current: Under 80Amp
Resistance: 14.4Ω
Number of Terminals: 3
Contact Material: Copper
Contact Studs: 5/16 -24 Studs Standard & Long
Bracket mounting: Holes 5/16 x 19/32 2-13/64 on Center.

Application:

Fit for Marine equipment
Fit for Winches
Fit for Military vehicles
Fit for Hydraulic control units
Fit for Golf carts
Fit for Factory machines
