Part Number:

124-10511, 5120640, SO51206 Prestolite 15-526, SBC4201AD, 120-105111-5, 124-105111, 124-105111-3, 124-105111S1, 124-902, 124-902S1, JF2-H1950-00, JR3-H1950-00, J38-81950-01, JF2H195000, JR3H195000, J388195001

Application:

Fit for Yamaha Golf Cart Kart G2 G8 G9 G11 G14 G16 G20 G2-G16 Gas 1985-2002

Specification:

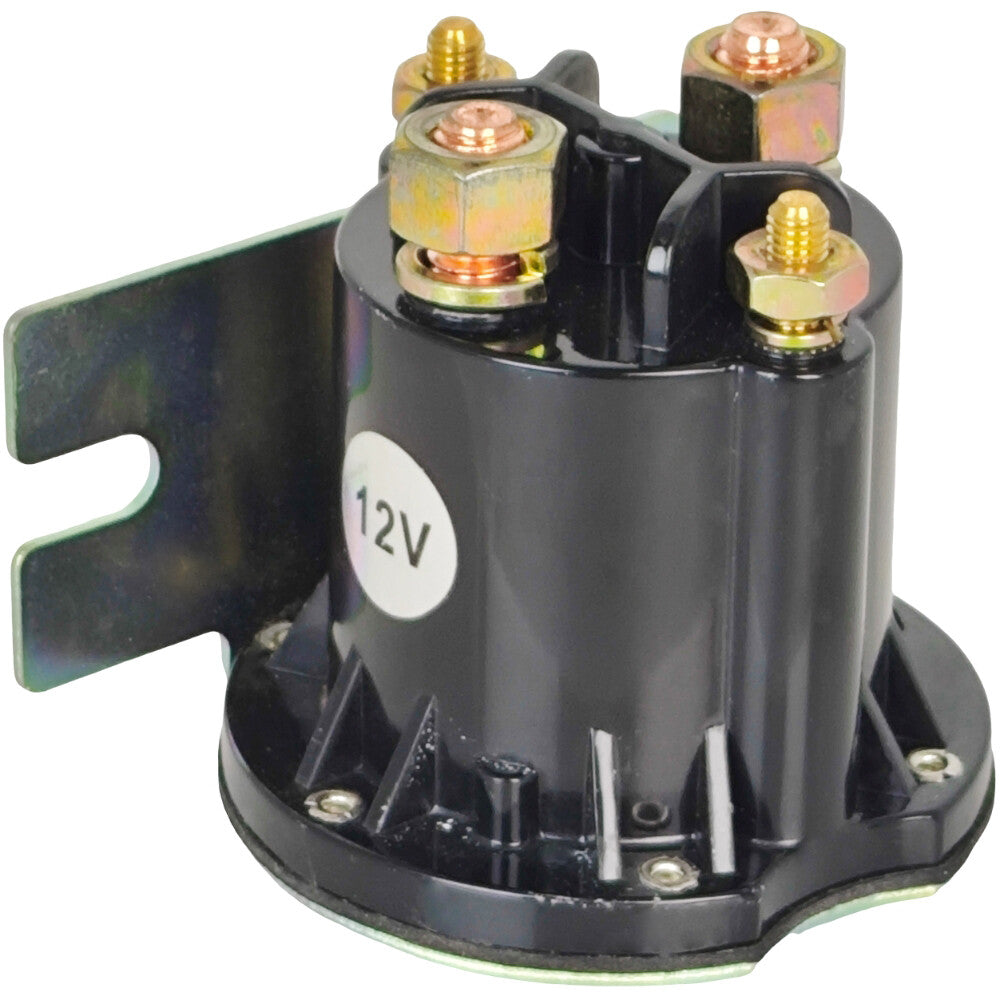

Voltage: 12V
Carry Current 150 Amps, Inrush 800 Amps
Terminals: 4
Duty: 100% Continuous
(2) 5/16-24 & (2) Non-Grounded 10-32 Studs

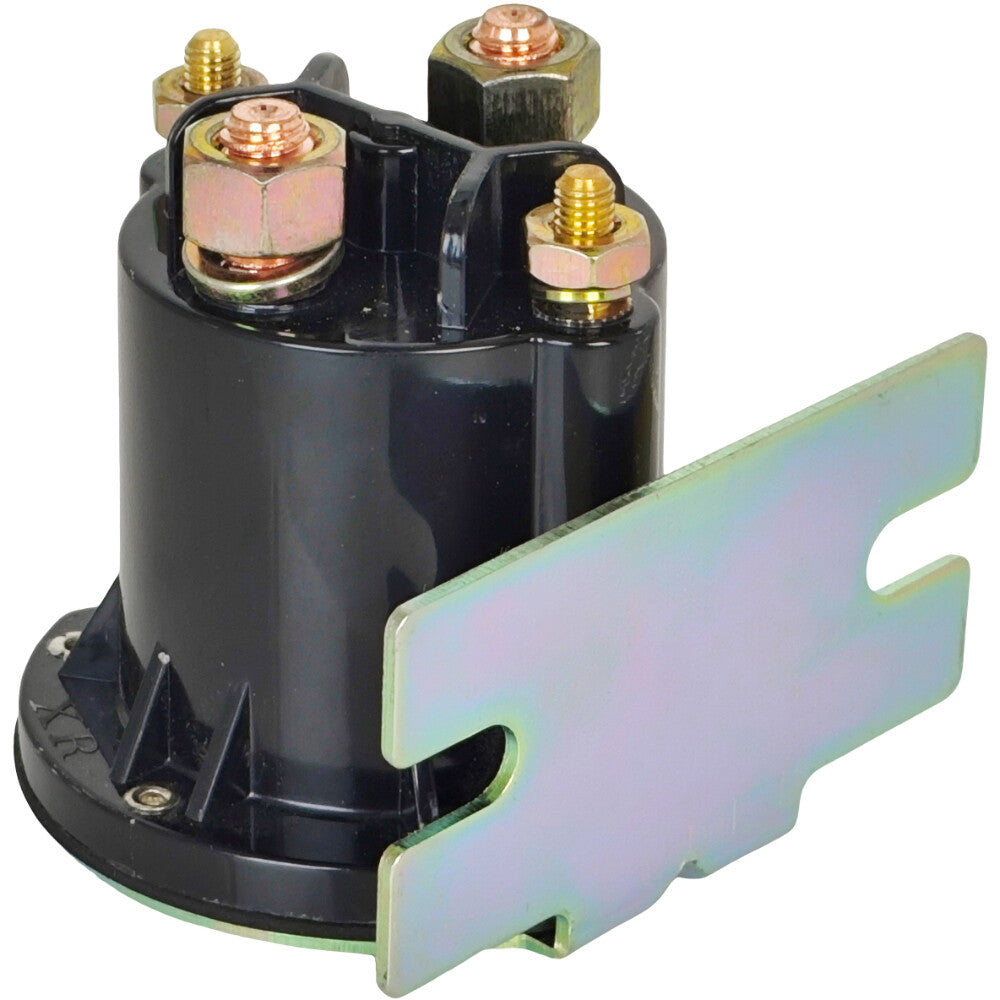

Mounting Type: Flat, L Bracket
Contact: Copper
Sealed Design

Mounting Instructions:

1. Select a desired mounting location
2. Using the contactor as a template, mark the centers of the mounting holes.
3. Using a ¼” drill bit, drill the holes marked in the previous step.
4. Mount the contact using ¼’ bolts and nuts.
5. Wire the relay according to the wiring diagram.
