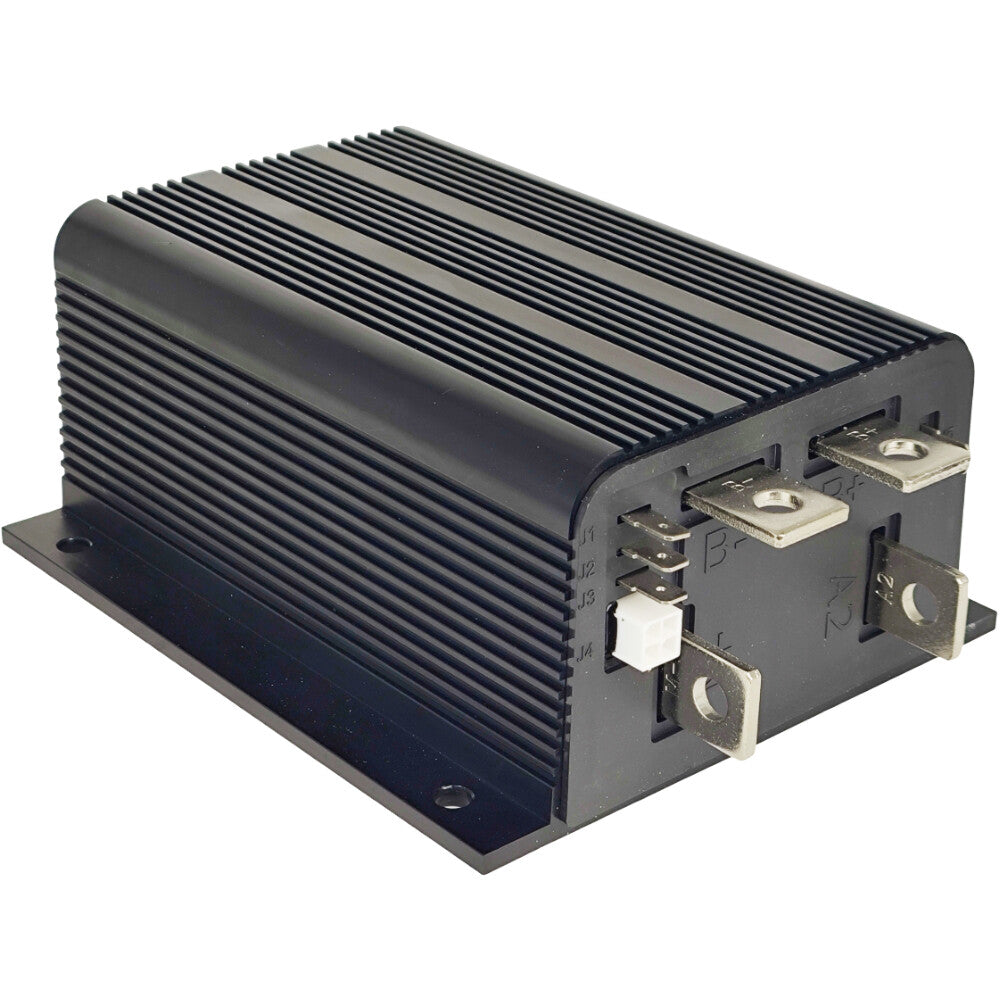

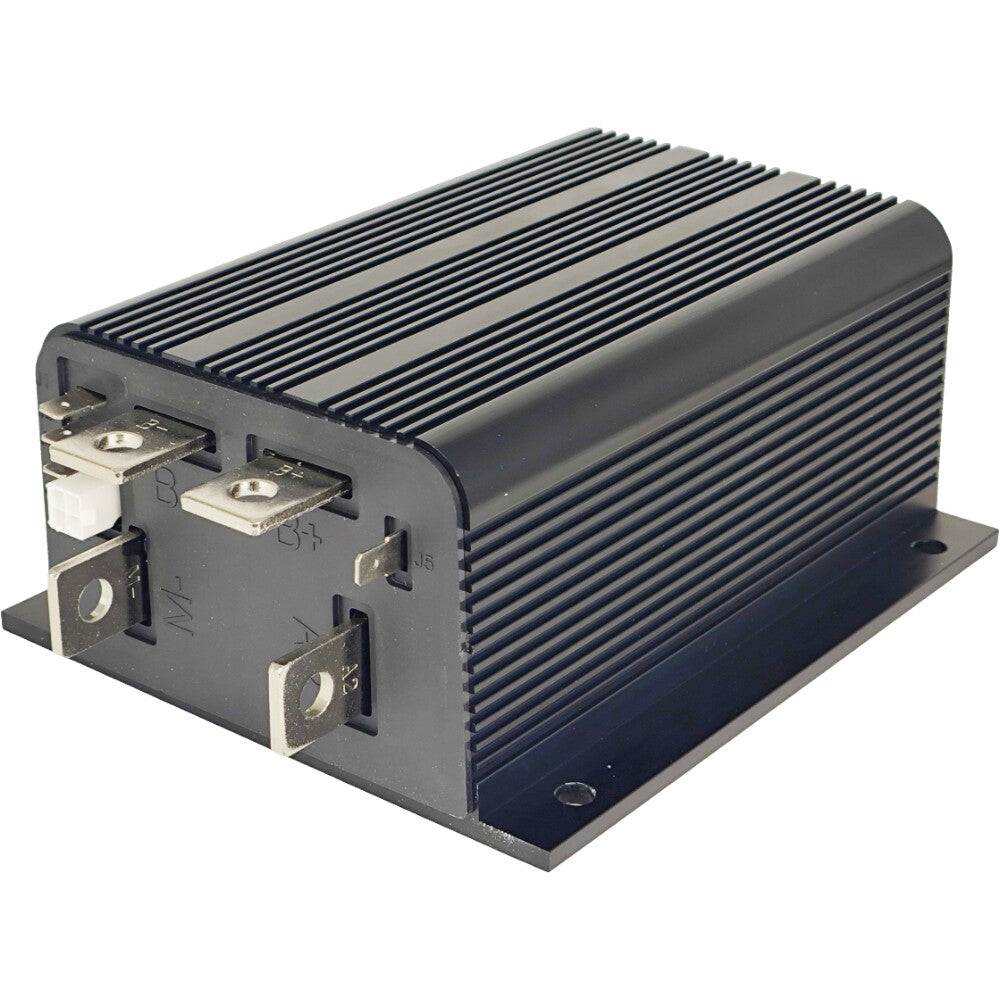

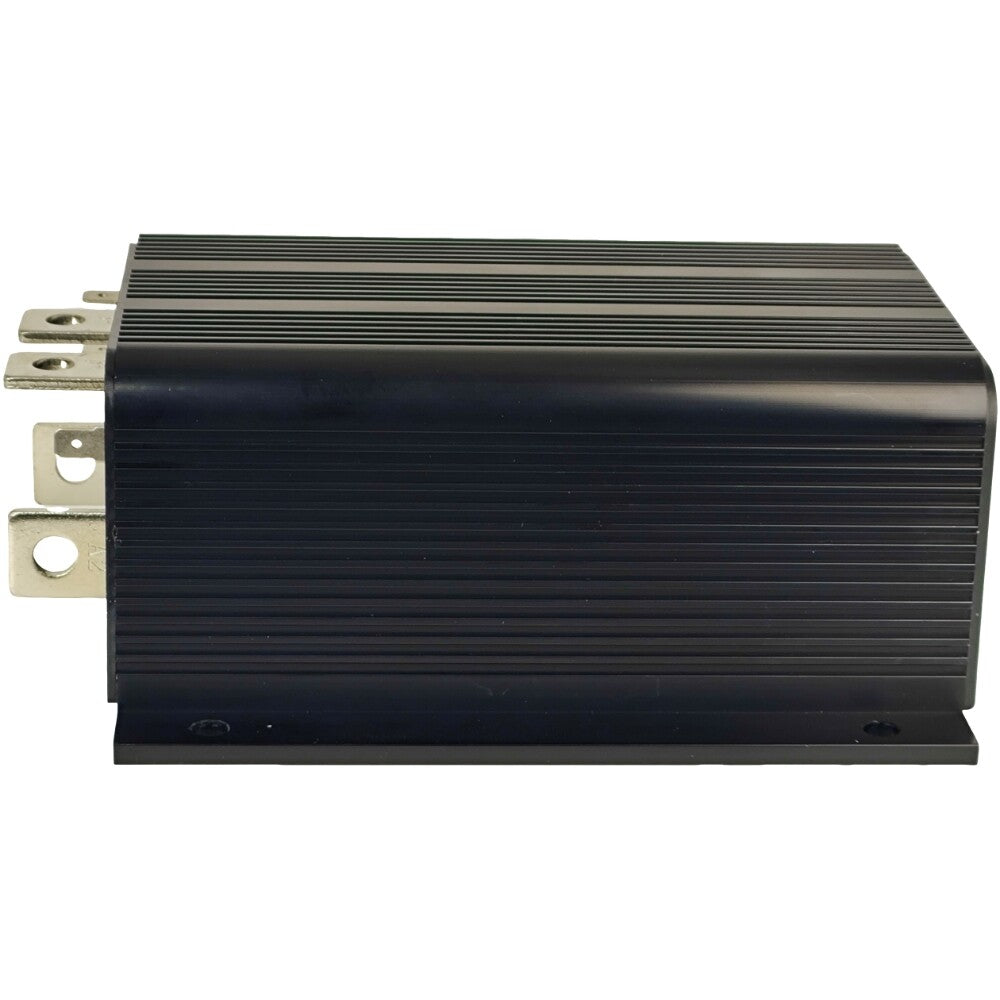

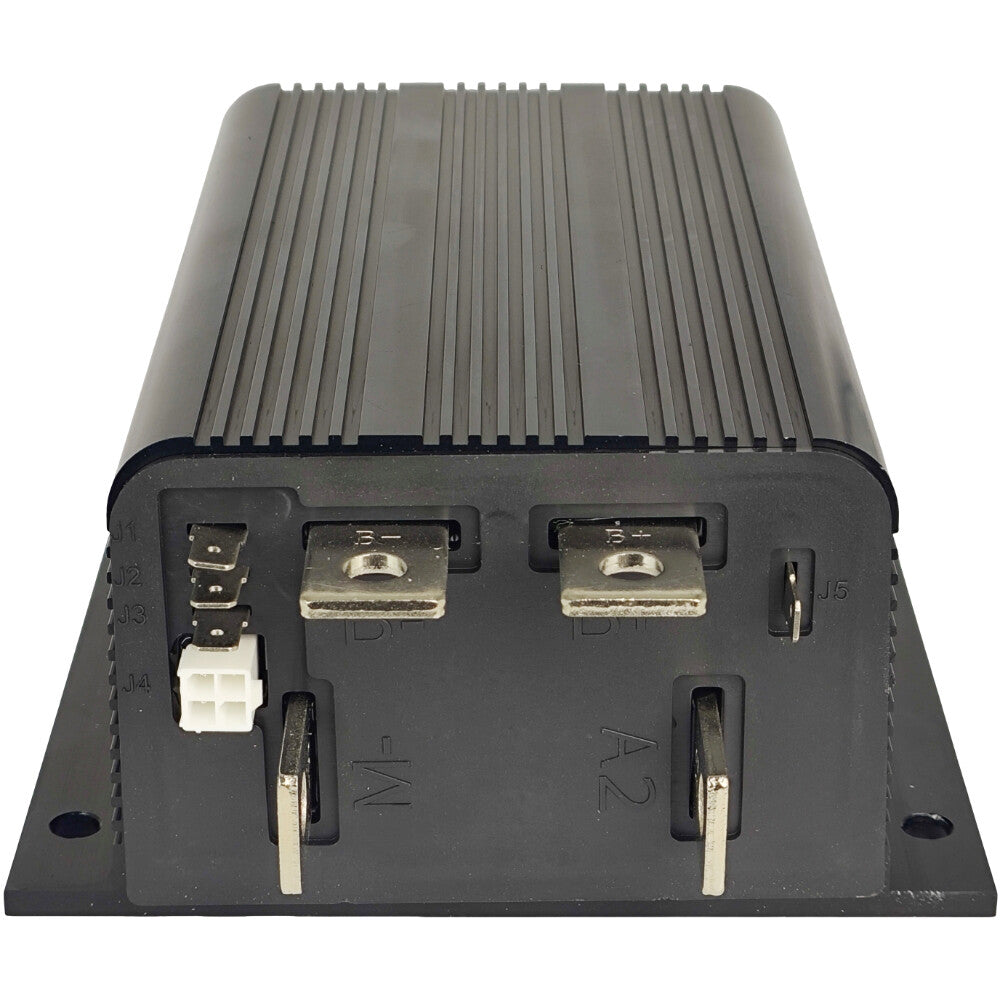

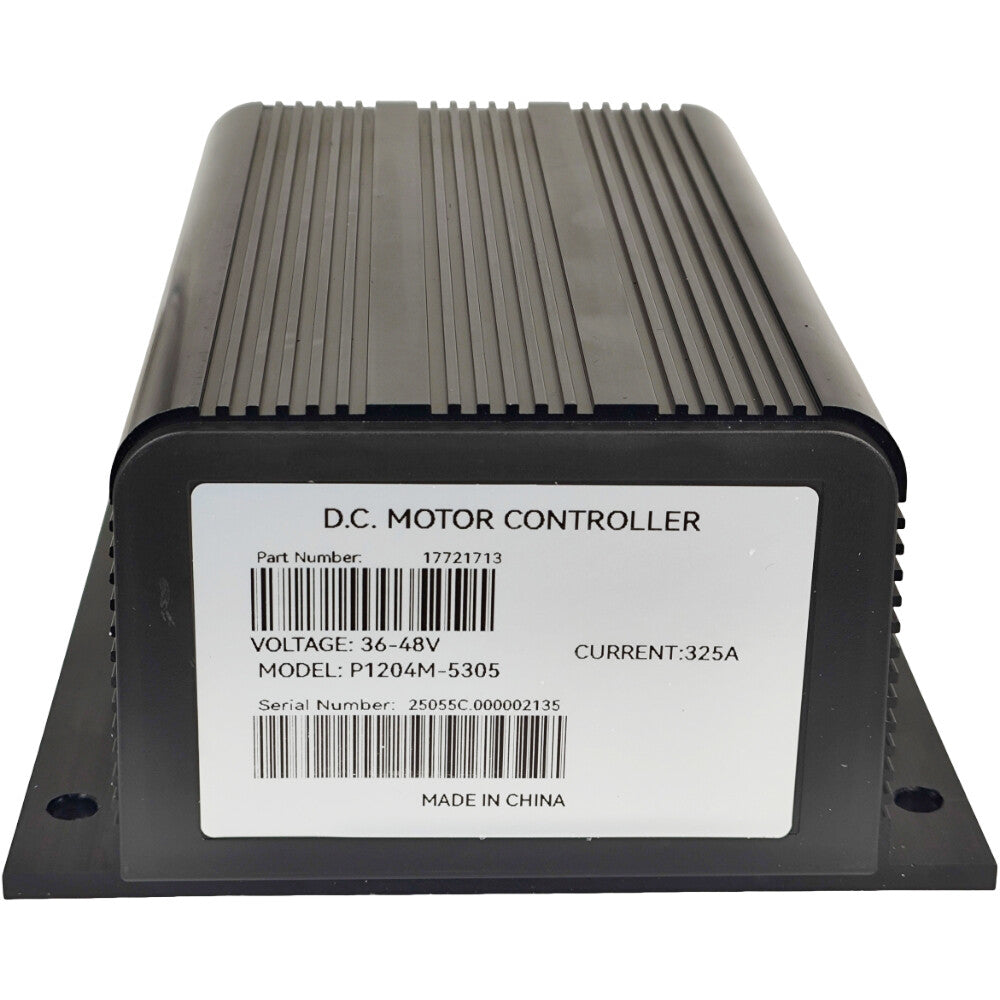

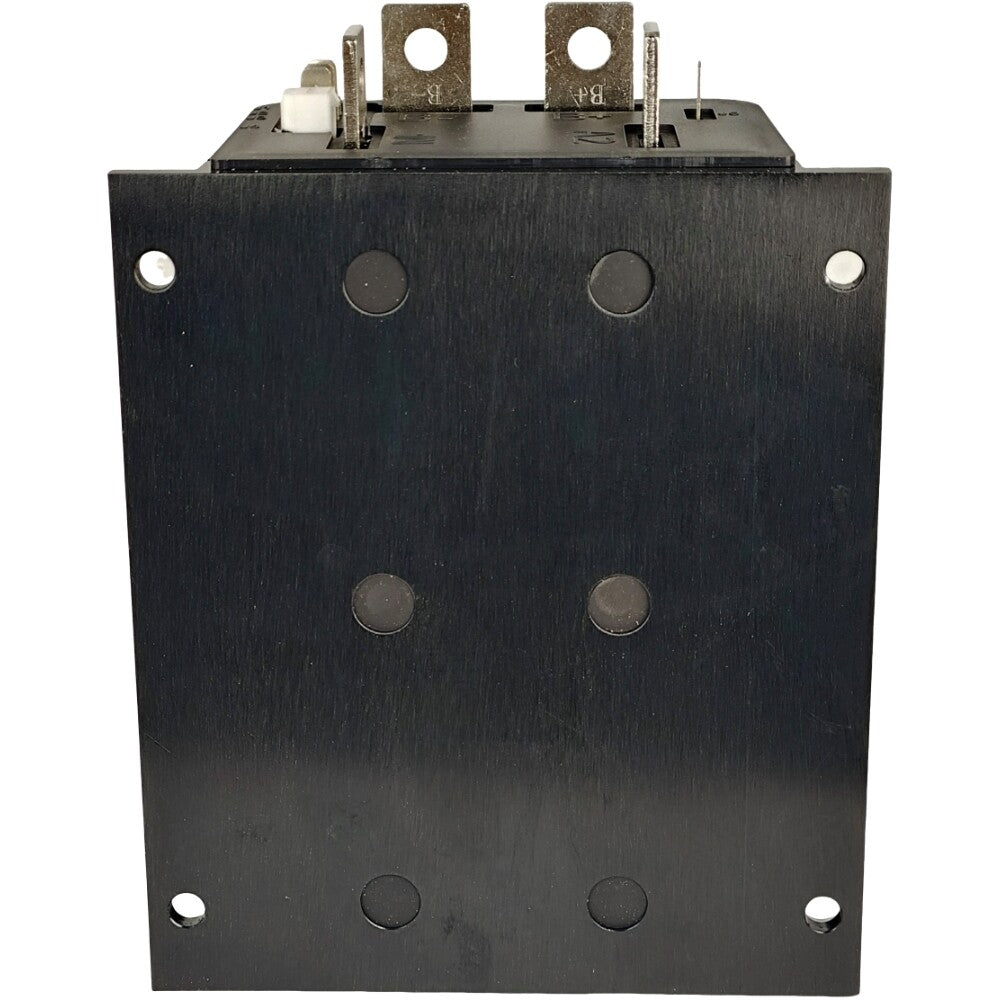

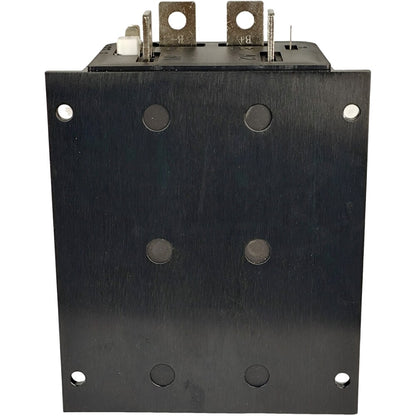

1204M-5305 36-48V 325A 0-5K DC Motor Controller for Curtis EZGO Club Car

Part Number:

1204M-5305

Specification:
Voltage: 36V / 48V
Current Limited: 2 Min 325A, 1 Hour 140A
Throttle Type: 0-5kΩ
Connections:
Universal logic board supports multiple throttle types and high pedal disable (HPD) options.
1.Protection provided by rugged anodized aluminum extruded housing.
2.Simple mounting and wiring with push-on connectors for control signals.
3.Plated solid copper buses used for all power connections.
4.Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
5.Throttle fault protection circuitry disables controller if throttle wires become open.
6.HPD feature prevents controller operation if key is turned on while throttle is applied.
7.Plug braking diode internal to controller.
8.Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
9.Easily programmable through the handheld programmer 1313-4331 or 1314 PC programming station.
Features:
Universal logic board supports multiple throttle types and high pedal disable (HPD) options.
1.Protection provided by rugged anodized aluminum extruded housing.
2.Simple mounting and wiring with push-on connectors for control signals.
3.Plated solid copper buses used for all power connections.
4.Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
5.Throttle fault protection circuitry disables controller if throttle wires become open.
6.HPD feature prevents controller operation if key is turned on while throttle is applied.
7.Plug braking diode internal to controller.
8.Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
9.Easily programmable through the handheld programmer 1313-4331 or 1314 PC programming station.
