1204-410 48V 325A 5K-0Ω Motor Controller for Curtis EZGO Club Car 1204-412

Part Number:

1204-410, P1204-410

Application:

Fit for Club Car DS 1996-UP Golf Carts 1018402-01, 101840201
Fit for EZGO Golf Carts
Fit for a wide variety of industrial electric vehicles
Fit for Curtis 1204-411, 1204-412, 1204-413, 1204-416, 1204-417, 1204-418, 1204X-4202
Fit for Altrax AXE-4834, AXE-4834P

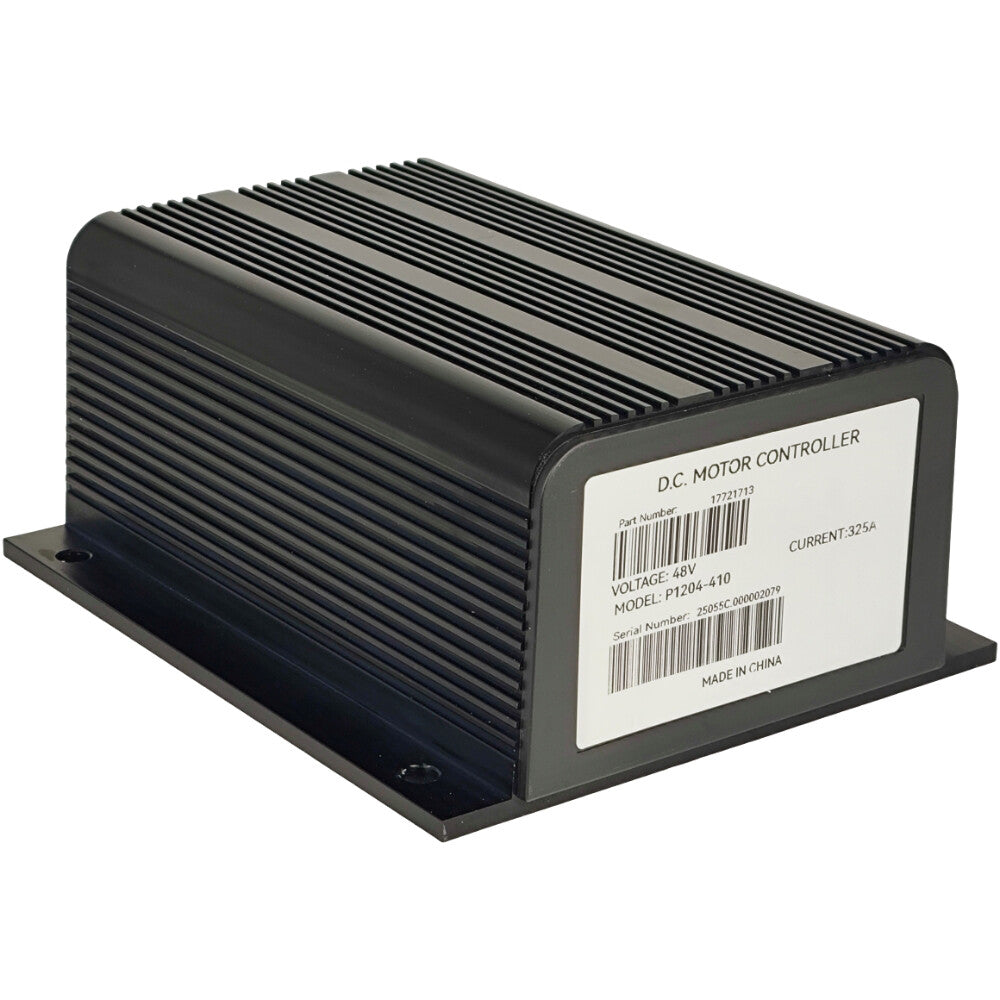

Specification:
Voltage: 48V
Current: 325A
Throttle Type: 5K-0
Connections:
This is an upgraded controller featuring a J4 connector, designed for status LED indication or programming interfaces.

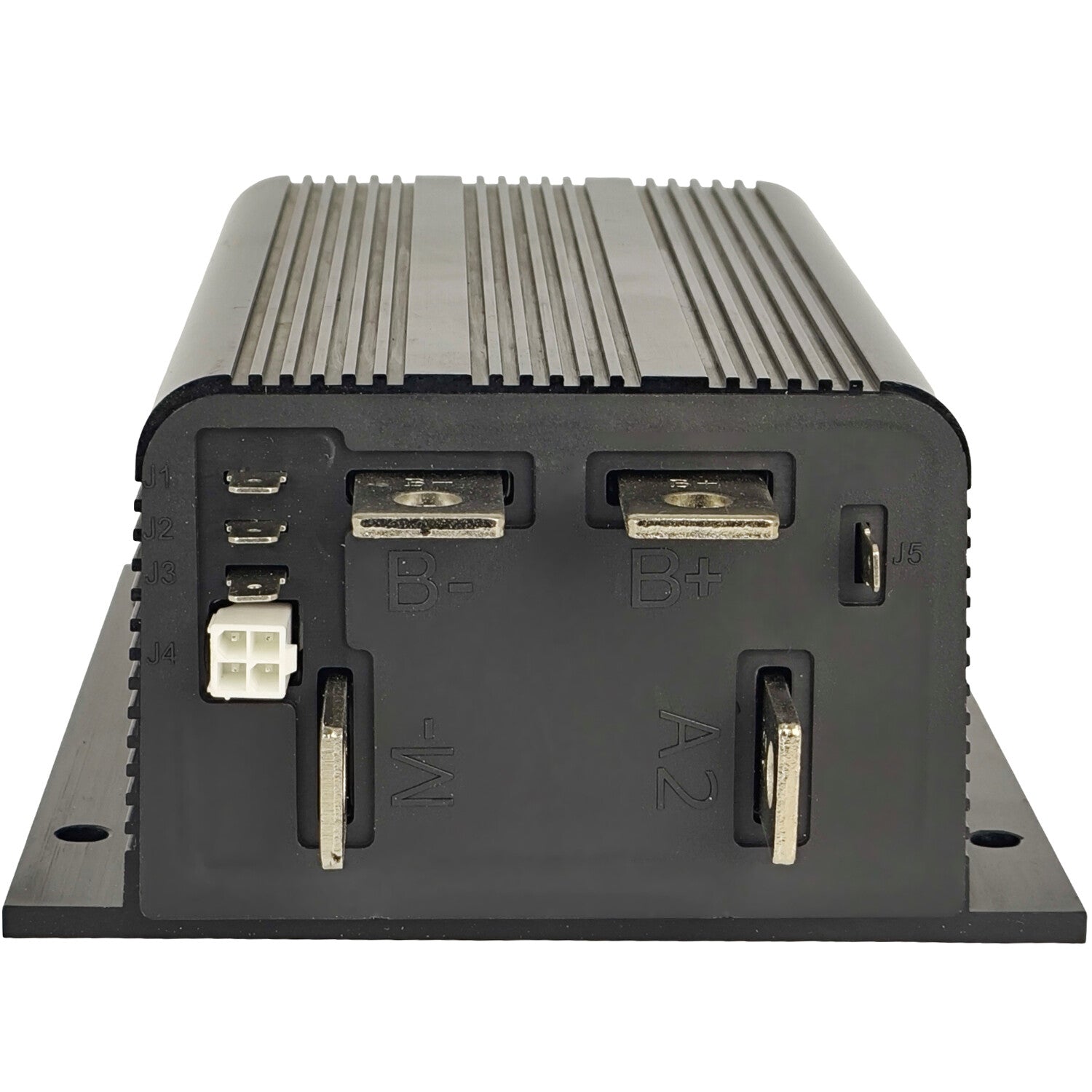

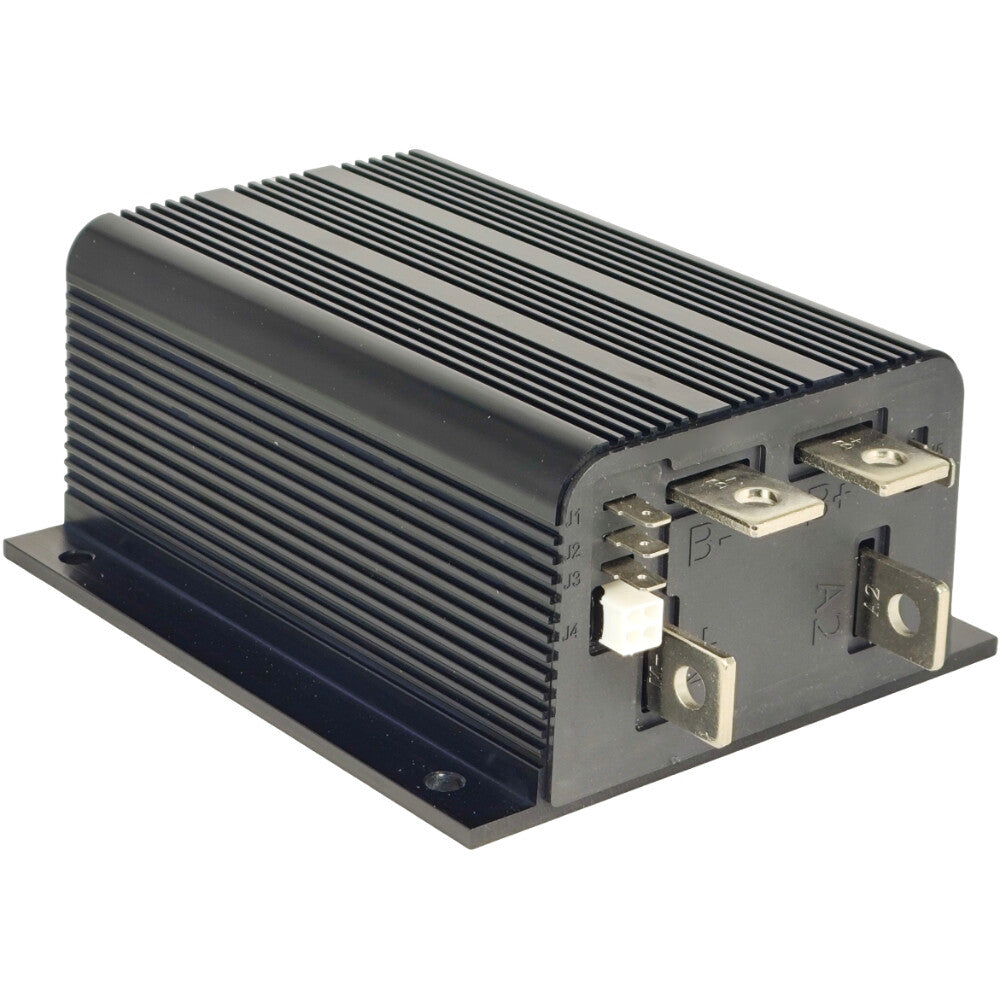

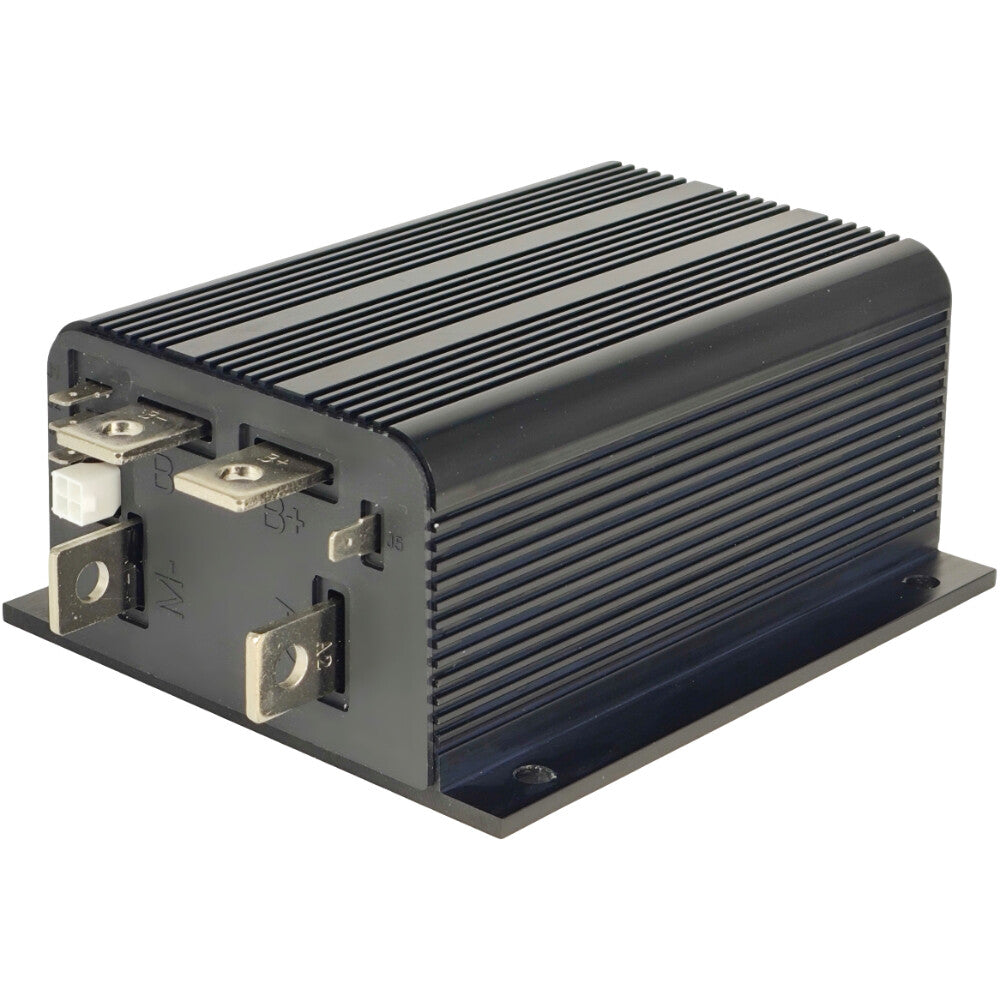

These controllers have five low-current connections: four 6.35 mm push-on terminals (J1, J2, J3, and J5), and one 4-pin connector (J4).
J1: Keyswitch.
J2: Wire 1 of 2-wire throttle; Pot High of 3-wire or ITS throttle.
J3: Wire 2 of 2-wire throttle; Pot Wiper of 3-wire throttle; Pot Low of ITS thottle; or electronic throttle input.
J4: 4-pin connector, an external Status LED or a programmer can be connected to J4. Note: When J4 is used for a Status LED, a jumper must be added between pins J4-1 and J4-4.
J5: Reverse signal output / main contactor coil driver.
