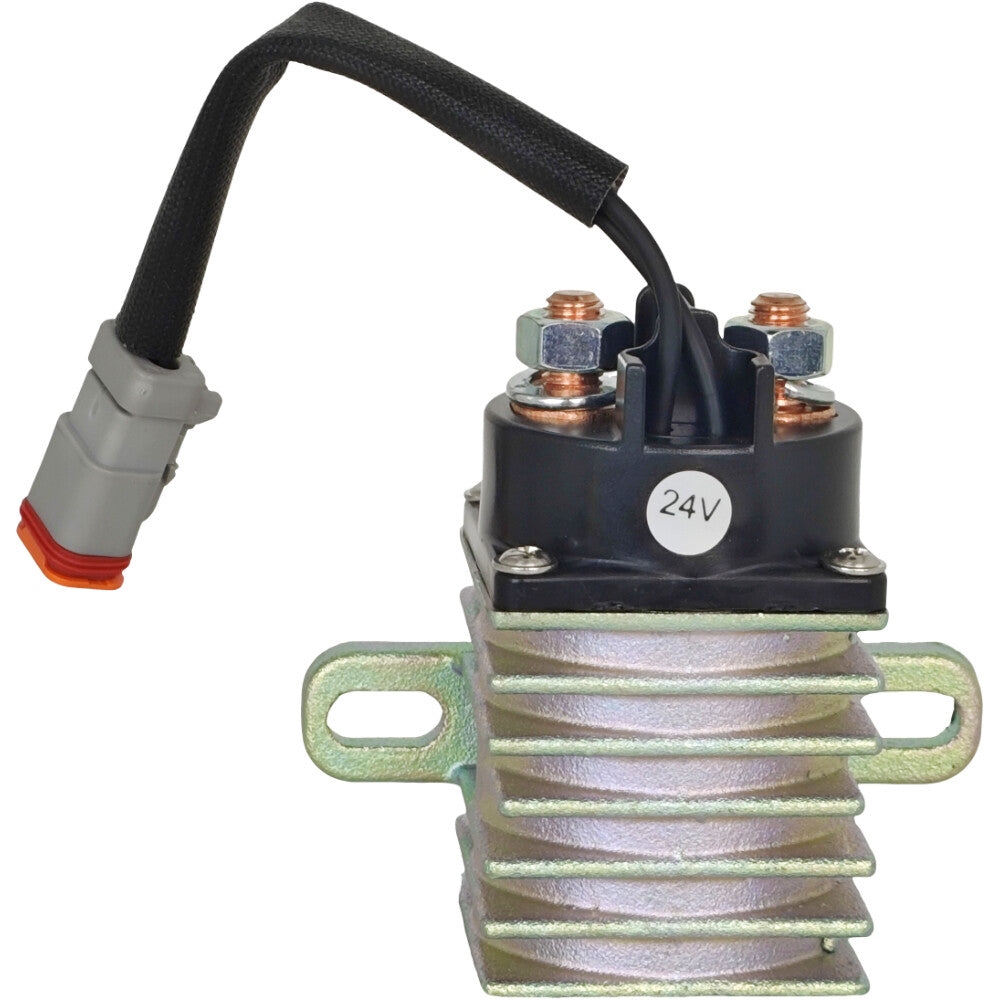

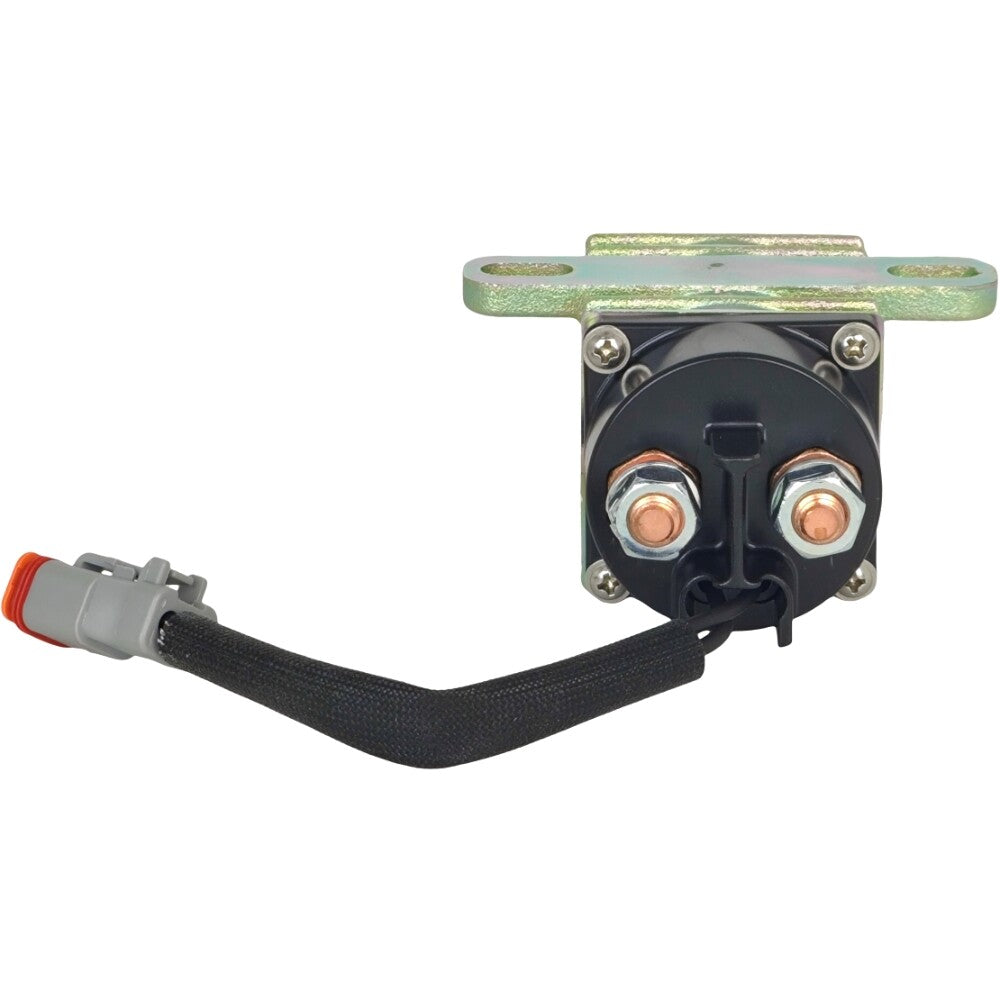

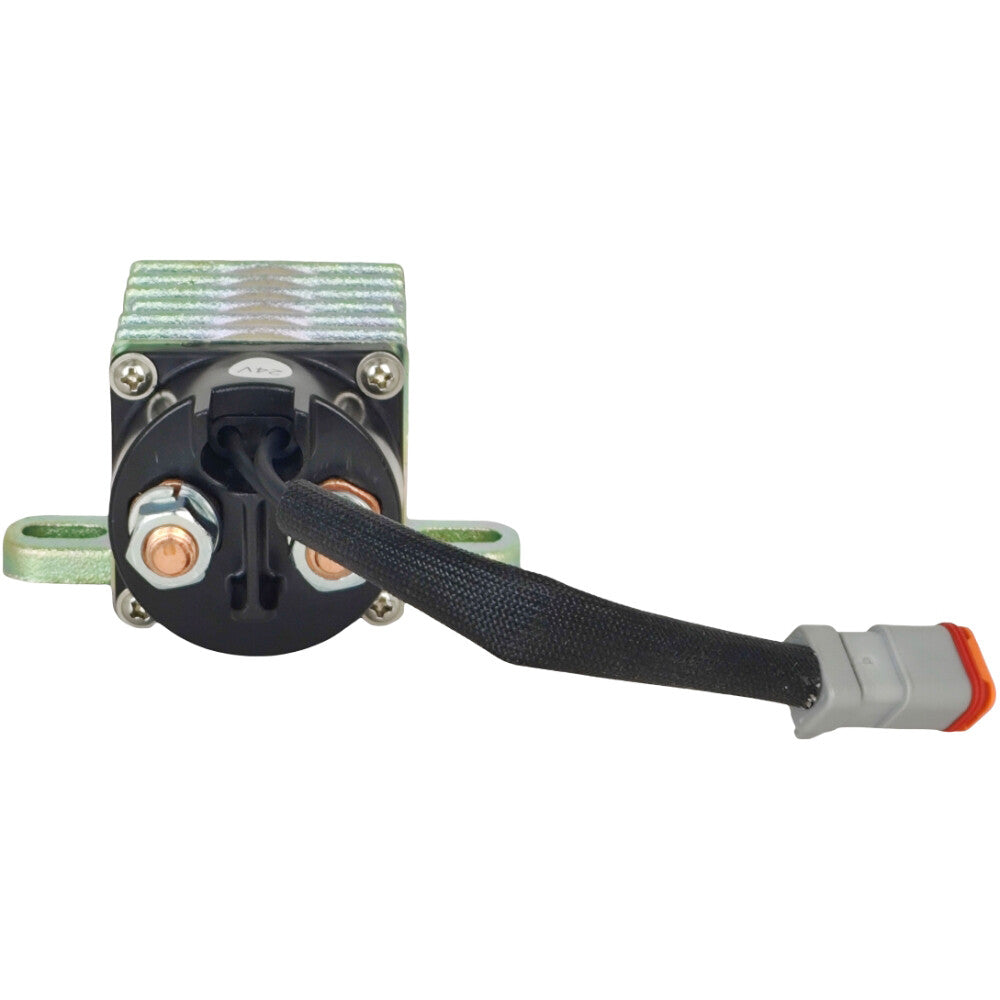

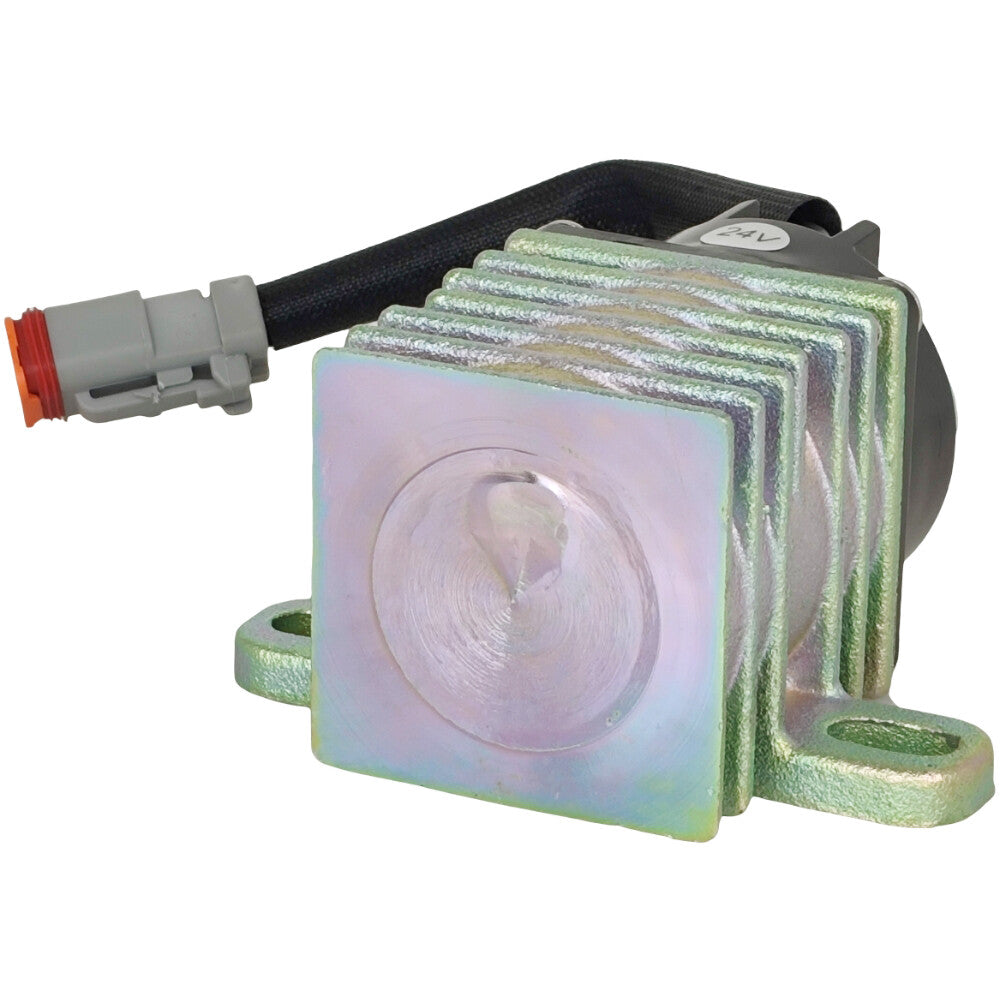

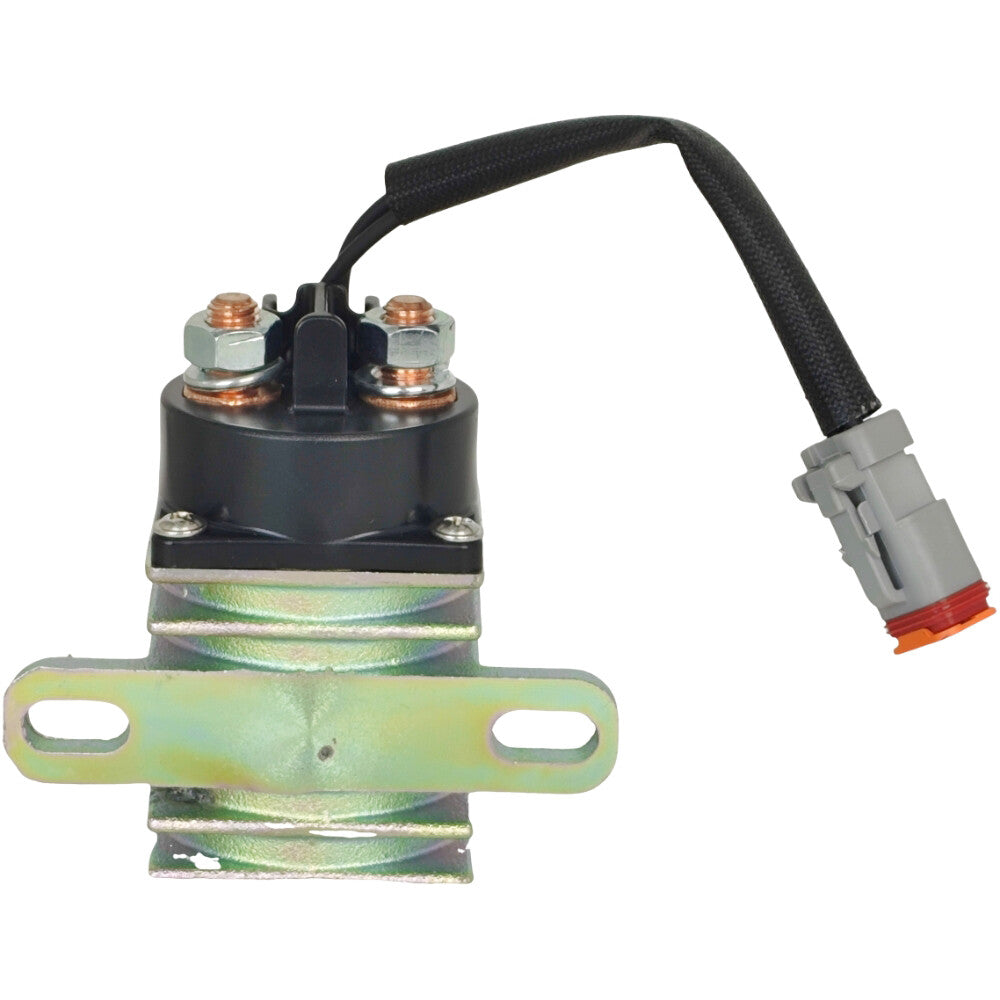

100A 24V Relay Solenoid 3740150 241-8368 Fit for Industrial Engine C15 C13 C18

Part Number:

241-8368, 398-0940, 3740150, 2915064, 1670138

Application:

Fit for JLG the following models: 1230ES 1930ES 2032ES 2630ES 2030ES 2632ES 2646ES 2632ES 3246ES 3248RS 1932R 1532R

Industrial Engine C32 C27 C18 C9.3 C9.3B C4.4 C13 C15

Excavator M315F 320D2 317 315 313 320GX OTHER 320 GX 320 GC 318D2 L 330 GC 323D L 326D2 L 320D 5230B 317 GC 315 GC 320D GC 323D2 L 313D2 LGP 312D2 GC 313 GX 313 GC 320 326 325 323 330 335 336 333 323 GX 318D2 323 GC 320D2 L 329D2 FM538 FM548 330D2 320D2 GC 320D2 FM 312D2 L FM558 FM568 330GC 312D2 330D2 L 323D2 323GC 5130B 316 GC 316 GX 313D2 GC 320D L MH3040 326 GC 326D2 313D2-GC 313D2 326GC 336 GC 311F LRR 312 GX 312 GC 329D2 L

Wheel Tractor 627 623 621 637 632 631 623K LRC 651B 631G 631K 657B 657G 613G 637G 637K 627K LRC 621K OEM 623K 623H 621H 621G 621K 627G 627K 627H 657 651

Specification:

Coil Voltage: 24 Volt
100 Continuous Amps, 400 Surge Amps
Duty Cycle: 100% Continuous
Contact Studs: Two (2) 5/16-24

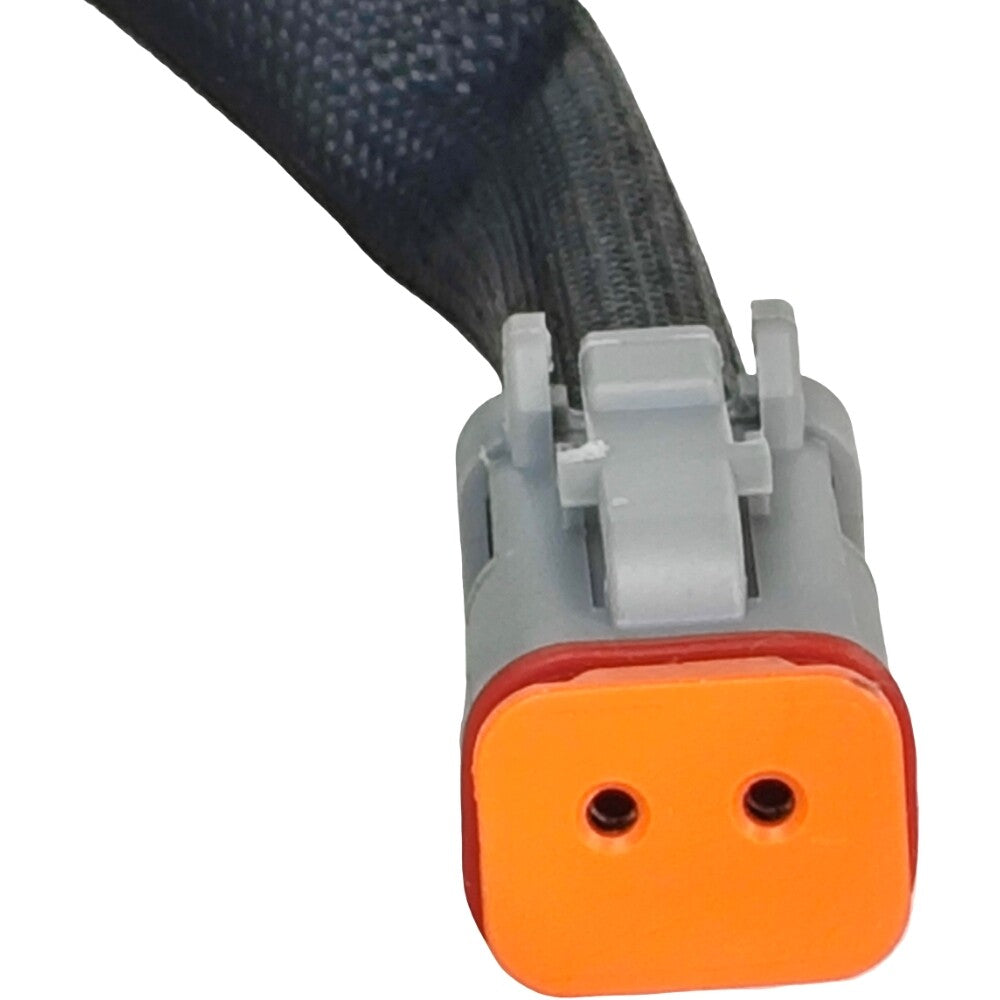

Connector: Compatible with Deutsch 2-pin (DT06-25)
Coil Connection Configuration: Ungrounded Leads
High Current Stud: Standard Defender
Mounting Brackets: Closed Hole
Bracket Type: Investment Cast Housing, Intergal Bracket 90° to Studs
Bracket Location: Standard Location Fixed by Housing
